Input (AC): measuring the input voltage, current, power,
power factor, frequency, total harmonic and harmonic components @ 0~50 times
and crest factor.
Frequency range: 45Hz~5KHz
Voltage range: 1V~300V
Current range: 1mA~6A
Voltage and current test accuracy: ±(0.1% RD+0.1% FS+1
digit)
Power range: 0.1W~1800W
Power test accuracy: ±(0.1% RD+0.1% FS+1 digit)
Power factor range: 0.000~+1.000
Power factor test accuracy: ±(0.1% RD+0.1% FS+1 digit)
Harmonic order: 0~50
Output (DC): Measuring lamp voltage (average voltage, RMS
voltage), lamp current (average current, RMS), lamp power, ripple current
Voltage range: 1V~300V
Current range: 1mA~6A
Voltage and current test accuracy: ±(0.1%
RD+0.1% FS+1 digit)
Power range: 0.1W~1800W
Power test accuracy: ±(0.1% RD+0.1% FS+1 digit)
Ripple current range: 1mA~6A
Ripple current accuracy: ±(0.1% RD+0.1% FS+1 digit)

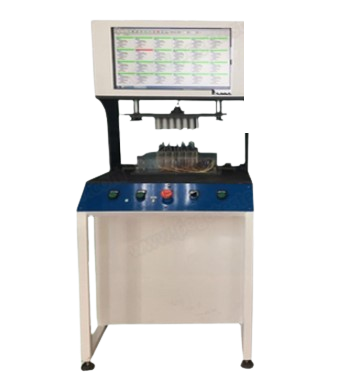

LED power driver tester meets the requirement of IEC62384:2006, 8 windows to display input and output characteristics, includes voltage, current, power, power factor, frequency, phase angle, total harmonic, harmonic component@ 0~50. Fast test speed, data can be gotten at 1s.
