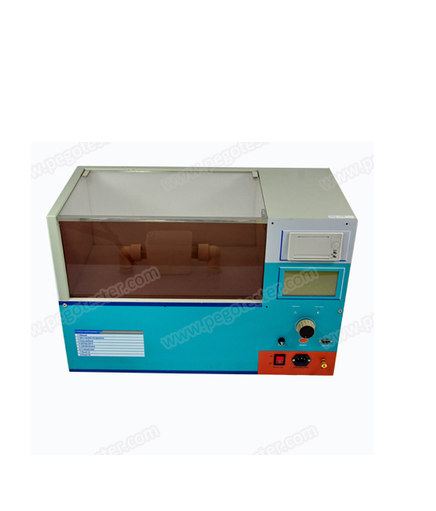

PEGO PG-502 Insulating Oil Tester (AC220V±10%)

Input voltage: AC220V±10%

Output voltage: AC0~99.9KV

Voltage rising speed: 0.5KV/s±10%, 2KV/s±10%, 3KV/s±10%, 5KV/s±10%

Accuracy: Class 3

Continuous test times: 1~9 times

Standing time: 0~9m59s

Memory: 100 groups

Voltage limit setting: 20KV~90KV

Arc time:≤20ms

Standard: 1) Manual test   2) IEC156/IS6792/BS5874 test   3) User Customization   4) ASTMD1816   5) ASTMD877   6) ASTMD1816   7) 5 minutes fast test   8) dielectric voltage test

Temperature required: 5~50℃

Humidity:≤ 90%RH

Volume: 420mm*380mm*410mm

Weight: 28kg

PG-502 insulating oil tester is developed according to the standards of IEC60156, ASTMD1816, ASTMD877, BS5874 and etc. The user can operate the equipment by mouse. Built-in EEPROM memory which can save 100 groups of data, and can freely to print the test result directly, the equipment has the features of simple operation, powerful function and Reliabilty.
