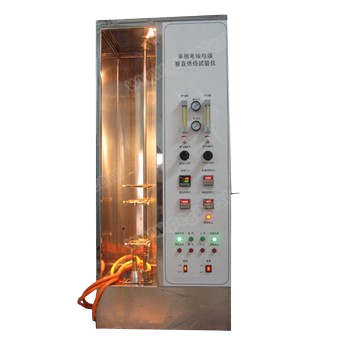

PEGO PG-DZ Single Wire & Cable Vertical Flame Tester (Φ12mm ± 0.5mm)

Burner: Φ12mm ± 0.5mm (inner diameter) and Φ9.5mm ± 0.5mm (inner diameter) bunsen burners

Burning angle: 45⁰

Flame height: 20mm ± 2mm to 190 ± 1mm adjustable

Flame time: 0-999.9s± 0.1s adjustable

After flame time: 0-999.9s± 0.1s (auto record, manual control)

Combustion gas: 95% propane

Flow pressure: flowmeter and voltmeter

Temperature range: 0-1000°C

Flame temperature required: heat up from 100°C±5°C to 700°C±3°C   within the time of 45s±5s

Thermocouple: Φ0.5mm K type thermocouple

Test period: Auto control

Material: stainless steel

Working dimension: 300mm*450mm81200mm (0.16CBM)

Outer dimension: 600mm*450mm*1450mm (W*D*H)

Single wire vertical flammability test apparatus is designed according to IEC60332-11. It adopts bunsen burner and certain combustion gas, the fire hazard is evaluated by burning rate, after glow time, after flame time and damage length of the specimen. The test apparatus is applied to do the single wire flammability test for lighting appliance, household appliance, motor and etc..
