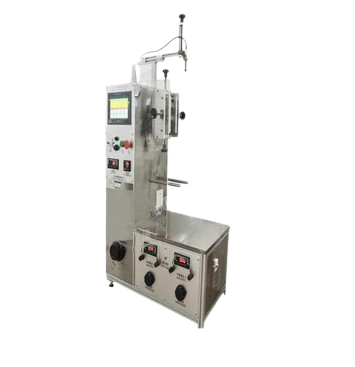

PEGO PG-FT Supply Cord Flexing Test Apparatus (0~50rpm)

Rotate speed: 0~50rpm (adjustable)

Counter: 0~9999 rev (settable)

Power Load: 200~260V/0~15A (adjustable)

Weights: 1N

Sample clamp: four-jaw chuck

Infrared Thermometer: check if the temperature rise exceed 65k after the test over (optional)

Working Power: 220V/50Hz

Dimension and weight: 800*500*1100mm /150KG

Power cord flexing test apparatus is designed according to GB4706.15 and IEC60335-2-23 clause 11.101. It is applied to do flexing test for appliance for skin or hair care with swivel connection. A 260V/15A power load is built-in the equipment.
