Working size: 700mm(L)*600mm(D)*1000mm (H)/420L
Outer Size: 600mm(L)*700mm(D)*1100mm (H)
Temperature range: RT＋10℃~250℃
Temperature fluctuation: ±1℃
Temperature uniformity: ≤±2℃
Temperature deviation: ±2℃
Material
Liner: stainless steel
Outer shell: A3 steel plate
heat preservation: Ultra-fine thermal insulation cotton
Heating: electrical heater
Observe window: glass
Recycle system: Single cycle, using horizontal wind, with
timing function, timing range: 0-99h
Temperature control: solid state control
Working power: AC 380V/50Hz (3 phases), 8KW
Accessories: Shelf*2

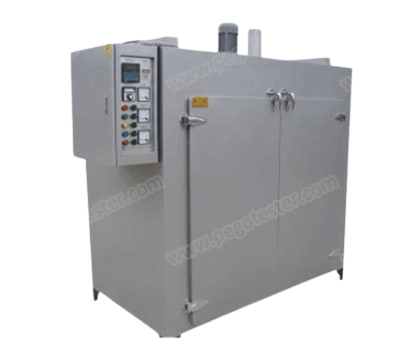

Oven is widely applied to the fields of motor, glass, ceramic, PC board, coating and etc. for the purpose of drying, preheat and finalize the design.The oven is consisted by working room, air supply device, Japanese control system, and protection system. Work with the ball pressure test apparatus can do the heating resistance test.
