Control mode
1). Manual control
2). Adjustable upper and down, maximum height: 800mm
Test station: 1
Test load: Load equal to 4 times weight of luminaire
Test weight: 50KG
Test time: 1 hour (user prepare the timer)
Column size: φ80mm*1500mm
Base plate
1). steel countertop: 800mm*800mm*10mm
2). Fangtong load-bearing bracket: 40mm*40mm
3). All-directions casters with brake
Fixture: Adjustable installation and tightening methods, can
fit with most of suspended luminaire
Suspended Lateral arm: Equip with adjusting sliding sleeve
and positioning pin, the height can be adjusted freely.
Dimension: 800mm*800mm*1400mm (L*D*H)

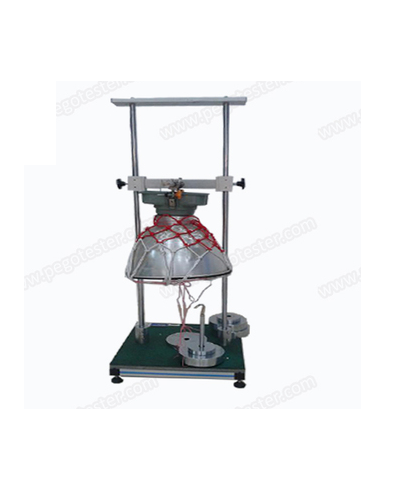

The luminaire suspending test device is for the load performance test of all suspended luminaire and assesses the deformation of components of the suspension system as per IEC60598-1 clause 4.14.1 (test A).
A constant evenly distributed load equal to four times the weight of luminaire shall be added to luminaire in the normal direction of the load for a period of 1h. There shall be no appreciable deformation of the components of the suspension system at the end of this period.
