Working dimension(cm): 80*60*85
Interior dimension(cm): 135*115*195
Temperature range:
0~+150℃
-20℃~+150℃
-40℃~+150℃
-60℃~+150℃
Humidity range: 20%~98% R.H.
Accuracy:
Temperature: ±0.01℃; humidity: ±0.1% R.H.
Fluctuation/Evenness: ±0.5℃/±2℃
Temperature rise speed: 2℃-4℃/min
Temperature down speed: 0.7℃-1℃/min
Humidity fluctuation:±2.0%R.H.
Sensor: Pt 100 resistor
Cooling system: Taikang compressor
Protection device: Over-heat, over load, leakage, short
circuit and etc.
Configuration: Φ50 test hole (1 piece), sample shelf (2
pieces), glass view window, floodlight
Power supply: 380V±10%, 50Hz,3P+N+G
Power consumption: 5.5KW

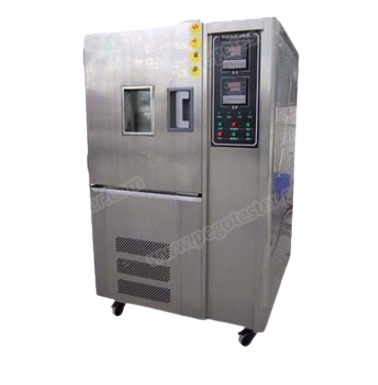

High-low temperature and humidity chamber is a kind of environment test chamber, designed according to IEC60068-2-1, IEC60068-2-2 and IEC60068-2-3. It can accurately simulate the conditions of low temperature, high temperature,low temperature & humidity and high temperature & humidity. It is applied to the industries of electronic, battery, plastic, food, paper, car, LED lamps and so on.
