Accuracy of illuminance: ±5%
Wavelength range: 810nm~890nm, 880nm~980nm (optional)
Peak wavelength: 850nm@810nm~890nm, 940nm@880nm~980nm
Illiminance measurement range: 1~20000uW/cm2
Interface port: Type-C
Sampling time: 50~10000mS
Dimension
65mm*147mm*18.5mm
screen: 56mm*113mm
Display area: 50mm*75mm (3.5 inch touch screen)
Power Supply
built-in Li-battery (12h standby) and power adaptor
Charging adapter: AC110V~220V ±10% (input), DC5V/1A±5%
(output)
working condition: -10℃~+40℃ / 0~70% R.H.
Operation language: Chinese / English switchable

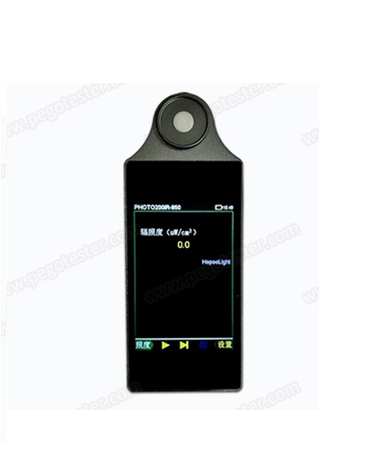

The infrared radiant illuinometer is applied to test the illuminace at the wavelength ranges of 810nm to 890nm and 880nm to 980nm, it adopts high-speed AMR processor and high-precision optical sensor, it has the features of lightweight design, stable performance, high precision and easy to carry. Equipped with 3.5-inch IPS LCD touch screen, making the device only has size of 65mm * 147mm * 18.5mm and weight of 180g. It is widely used in home, shopping mall, school, factory, greenhouse, outdoor and other field lighting measurement fields
