ACW
Output voltage range: (0.00-5.00)KV
Maximum output power: 500VA (5.0KV, 100mA)
Maximum rated current: 100mA
Current gear: 2mA, 20mA, 100mA
Output waveform: Sine-wave
Output waveform distortion: ≤5% (no-load or pure resistive
load)
Test time: 0.0s-999s 0=continuous testing
DCW
Output voltage range: (0.00-5.00)KV
Maximum output power: 100VA (5.0KV, 20mA)
Maximum rated current: 20mA
Current gear: 2mA, 20mA
Ripple factor: ≤5%
Test time: 0.0s-999s 0=continuous testing
Voltmeter
Range: (0.00-5.00)KV
Accuracy: ±(5%+3 digits)
Resolution: 10V
Display value: RMS
Ammeter
Range
Range 1: 0.1mA~2mA, range 2: 2mA~20mA, range 3: 20mA~100mA
Accuracy: 2mA: 1μA, 20mA: 10mA; 100mA: 0.1mA
Resolution: ±(5%+3 digits)
Timer
Range: 0.0s-999s
Resolution: 0.1St
Accuracy: ±(1%+50ms)

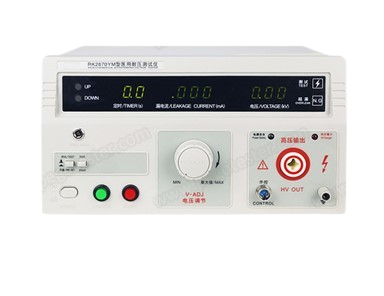

The RK2672CY medical withstand voltage tester has all the functions of the conventional withstand voltage tester, and has added an arc (flashover) detection function. Through an external oscilloscope, it can detect the “flashover” phenomenon intuitively, accurately, quickly and reliably. When the electrical equipment under test has no "flashover" phenomenon, the oscilloscope will display a stable "Lissajous figure (that is, a closed circle)", if the electrical equipment under test has a "flashover" phenomenon, the edge of the Lissajous waveform will appear jagged, indicating that there is a "flashover" inside the electrical equipment under test.
This product is also suitable for all kinds of electrical equipment that need to detect "flashover" defects. It is an indispensable withstand voltage tester for medical electrical equipment manufacturers, maintenance departments, users, product quality inspection departments, and technical supervision departments.
