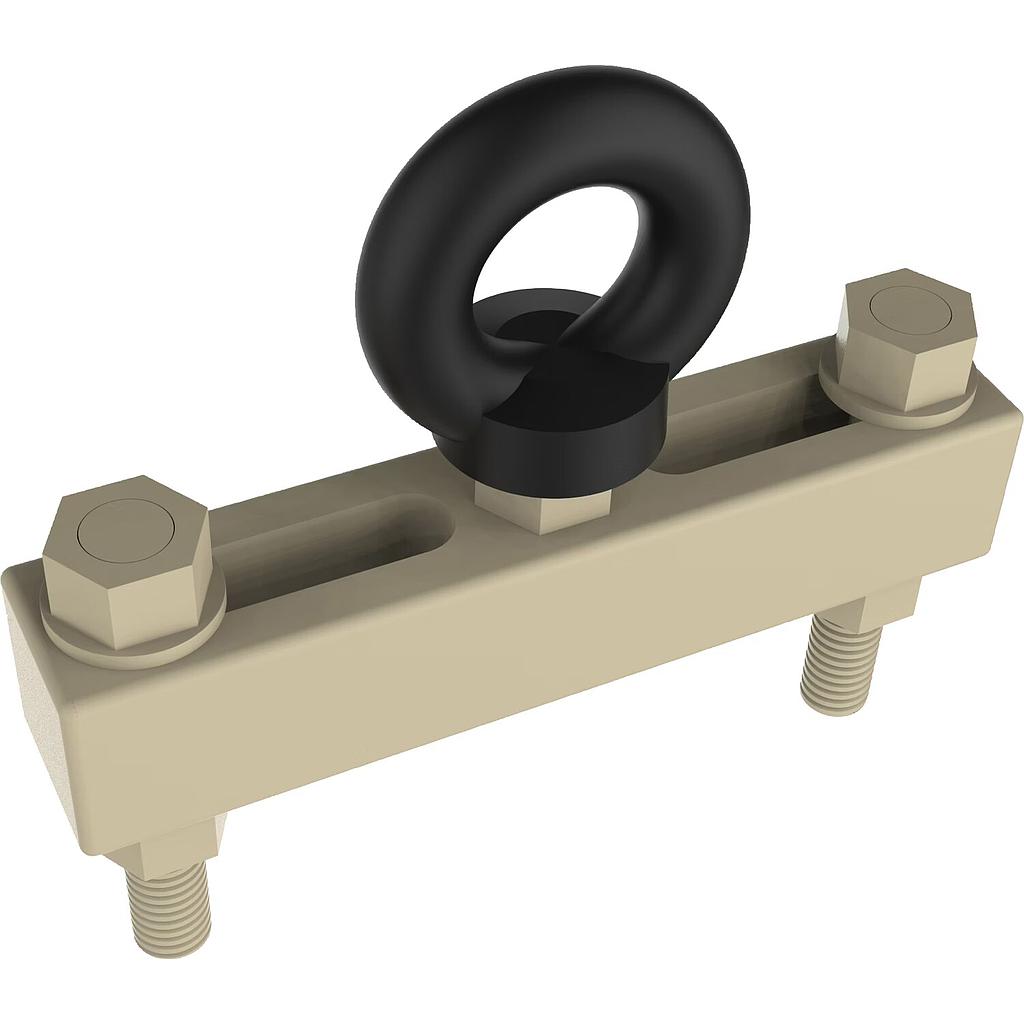

Penta EXTRABAT Insulating Accessory for Batteries

Description: Device for safely installing and removing battery cells.

Specifications:

Electrical insulation voltage: 1000 VAC — 1500 VDC

No conductive part: the extraction part of the device is made of fully insulating composite materials and the lifting eye is fully insulated.

Battery fastening width: centre distance adjustable from 45 to 120 mm.

Three pairs of insulating screws: M8, M10, and M12.

Maximum load limit:

200 kg on M8 screws

400 kg on M10 screws

500 kg on M12 screws

Dimensions (L × W × H): 150 × 136 × 30 mm

Weight: 0.3 kg

Supplied with case
