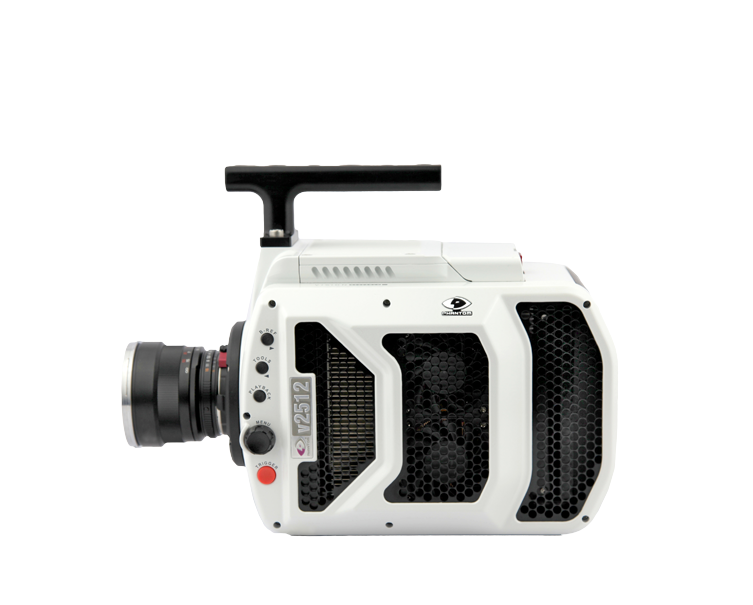

PHANTOM v2512 Ultrahigh-Speed Camera (25,700 fps)

The Phantom v2512 is the maximum speed available with 25 Gpx of throughput. Our highly sensitive, proprietary CMOS sensor combines with easy data management to produce clear images when speed is critical.

The fastest one megapixel digital high-speed camera on the market, the v2512 is capable of taking over 25,000 frames-per-second (fps) at full 1280 x 800 resolution.

Standard Mode: ISO 32,000D; 100,000T (Monochrome), 6,400D; 10,000T (Color)

Exposure: 1 µs minimum exposure standard, 265 ns minimum exposure with FAST option (export controlled)

Memory: 72 GB, 144 GB, 288 GB high-speed internal RAM

Connectivity: 10Gb Ethernet

CineMag IV for non-volatile storage (1 TB, 2 TB)

Datasheet

UHS Series Manual

CineMag Compatible Mechanical Drawing

Non-CineMag Compatible Mechanical Drawing

Spectral Response Curve

Videos

Phantom v2512 & v2640 Ultrahigh-Speed Cameras - A Comparison

Phantom 2512 Ultrahigh-Speed Camera - Solving the Mystery of Snapping Spaghetti

Phantom v2512 Ultrahigh-Speed Camera - Water Tube Blast Testing with Detonation Wave

Phantom v2512 Ultrahigh-speed Camera - Spray Analysis Applications

Phantom v2512 Ultrahigh-Speed Camera - Capturing the Mystery of the Thin-Film Lithium Ion Battery
