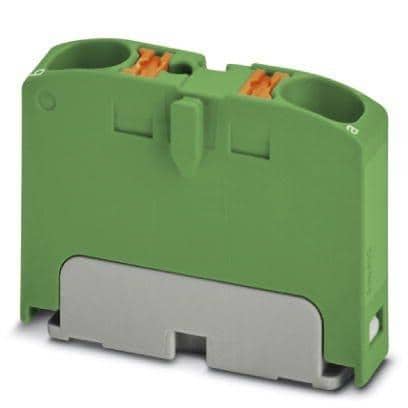

Color: Green
Width: 6.2 mm
Height: 21.7 mm
Length: 28.6 mm
Current Rating: 32 A
Mounting Style: Direct Mounting with Flange
Voltage Rating: 800 V
Wire Gauge Max: 10 AWG
Wire Gauge Min: 24 AWG
Housing Material: Polyamide (PA)
Connection Method: Push-In
Flammability Rating: UL 94 V-0
Number of Positions: 2 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
