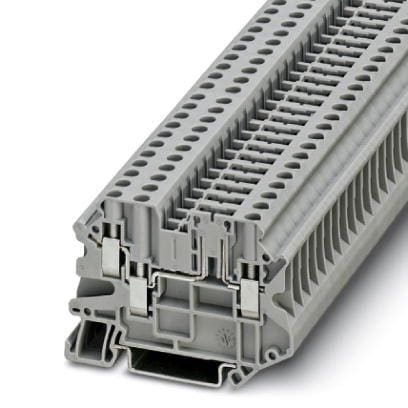

Color: Gray
Width: 6.2 mm
Height: 47.5 mm
Length: 65.4 mm
Unit Weight: 15.668 g
REACH - SVHC: Details
Current Rating: 20 A
Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)
Voltage Rating: 500 V
Wire Gauge Max: 10 AWG
Wire Gauge Min: 26 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 26 AWG to 10 AWG
Connection Method: Screw
Flammability Rating: UL 94 V-0
Number of Positions: 3 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
