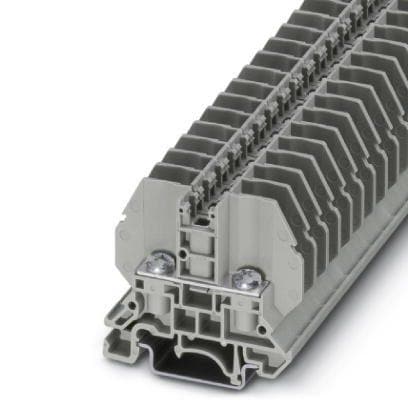

Color: Gray
Pitch: 9 mm
Width: 9 mm
Height: 47.1 mm
Length: 53.3 mm
Unit Weight: 13.039 g
Current Rating: 32 A
Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)
Voltage Rating: 800 V
Wire Gauge Max: 10 AWG
Wire Gauge Min: 26 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 26 AWG to 10 AWG
Connection Method: Bolt
Flammability Rating: UL 94 V-0
Number of Positions: 2 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
