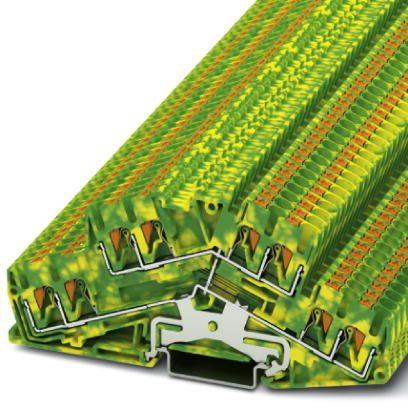

Color: Green / Yellow
Width: 5.2 mm
Height: 55 mm, 62.5 mm
Length: 115.2 mm
Unit Weight: 24.480 g
Current Rating: 20 A
Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)
Number of Rows: 2 Row
Voltage Rating: 800 V
Wire Gauge Max: 12 AWG
Wire Gauge Min: 26 AWG
Wire Gauge Range: 26 AWG to 12 AWG
Connection Method: Push-In
Flammability Rating: UL 94 V-0
Number of Positions: 8 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
