Function and Applications

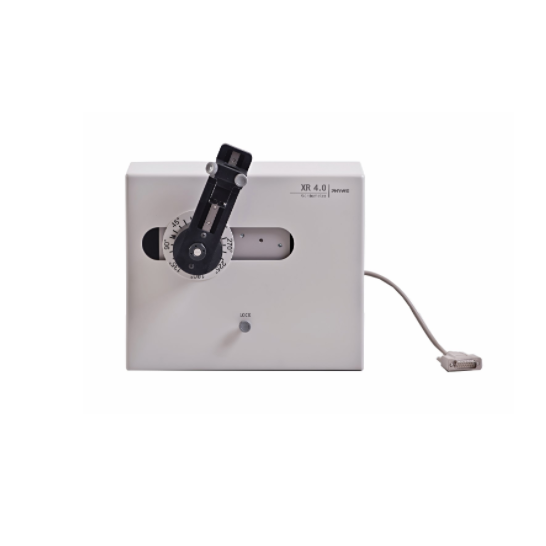

• Goniometer with two independent stepper motors for the precise angular positioning of a sample and detector.
Benefits
• Self-calibrating goniometer
• Plug & measure:
+ Automatic identification of the goniometer
+ Goniometer block with two independent stepper motors for rotating the sample holder and the detector either separately or coupled in a 2:1 ratio
+ The detector holder with a slit diaphragm holder for absorption foils can be moved in order to change the angular resolution
+ Includes a light barrier system for limiting the permissible swivelling range and, thereby, for protecting the detectors
+ Intuitive operation directly at the unit or via a PC
Equipment and technical data
• Angular increment: 0.1°...10°
• Rate: 0.5...100s/increment
• Sample rotation range: 0...360°
• Detector rotation range: -10°...+170°
• Dimensions: 35x30x20cm
• Mass: 5kg
