Function and Applications

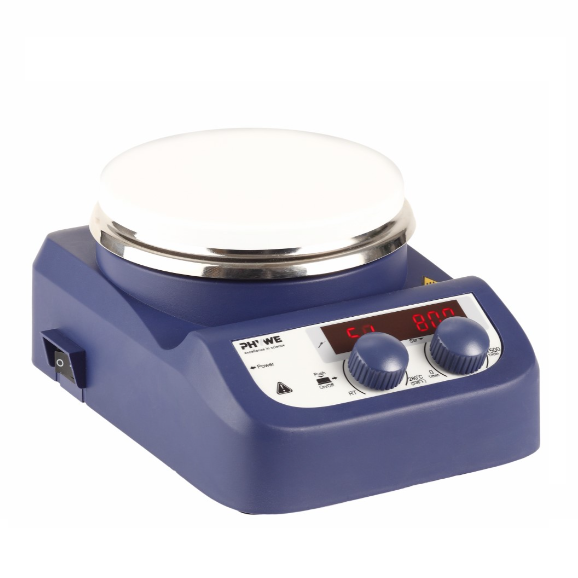

Hotplate Magnetic stirrer with connector for an external Pt-1000 temperature probe.
Benefits
• Excellent protected against corrosion by ceramic coated stirring surface
• Compact and stable housing
• Built-in temperature control function
• Temperature and speed setting via rotary knobs with digital display
• Display of set and actual temperature
• Connection for an external temperature sensor, which can be directly immersed into the medium to be tempered
Equipment and technical data
Stirring quantity: max. 3 liters of water
Speed range: 100~1500rpm
Heating power: 500W
Heating plate diameter: 135mm
Temperature control: 20~280°C
Control accuracy: ±2K
Connection for external Pt-1000 sensor (not included)
Over-heating protection: 320°C
Into the housing integrated a M8 female thread for tripod mounting rods
Including a magnetic stirring bar, l = 30 mm
Protection class: IP 42
Power supply: 230V - 50/60Hz
Dimensions (mm): 155x215x100
Weight: 1.5 kg
Optional Accessories
Temperature sensor Pt-1000 for magnetic stirrers with heating (35760-01)
Support rod with M8 thread (35760-02)
Experiments
Vapour pressure of water below 100°C - molar heat of vaporisation (P2340200)
