Direct access to our certified experts
Channels: 4
Vertical resolution: 12 bits (16 bits in enhanced resolution mode)
DC accuracy: ±1% of full scale (2% on 50mV range)
Sensitivity: 10 mV/div to 40 V/div
Input ranges (full scale): ±50 mV to ±200 V in 12 ranges
Input impedance: 1 MΩ in parallel with 24 pF
Input type: Floating single-ended PicoBNC+ connector
Input coupling: Software selectable AC/DC
Input overvoltage protection: ±250 V (DC + AC peak)
Buffer memory: 250 M samples shared between active channels
Waveform buffer: Up to 10,000 waveforms
Timebase ranges: 5 ns/div to 5000 s/div
Bandwidth: 20 MHz (10 MHz on ±50 mV range)
Maximum sampling rate (single shot)
1 channel in use: 400 MS/s
2 channels in use: 200 MS/s
3 or 4 channels in use: 100 MS/s
TRIGGERS
Source: Any input channel
Basic triggers: Auto, repeat, single, none
Advanced triggers: Rising edge, falling edge, edge with hysteresis, pulse width, runt pulse, dropout, windowed, logic
Maximum pre-trigger delay: Up to 100% of capture length
Maximum post-trigger delay: Up to 4 billion samples
SPECTRUM ANALYZER
Frequency range: DC to 20 MHz
Display modes: Magnitude, peak hold, average
ENVIRONMENTAL
Operating temperature range: 0 °C to 40 °C (15 °C to 30 °C for quoted accuracy)
Operating humidity range: 5% to 80% RH, non-condensing
Storage temperature range: -20 to +60°C
Storage humidity range: 5 to 95% RH, non-condensing
PHYSICAL CHARACTERISTICS
Dimensions: 190 x 160 x 40 mm (approx 7.5 x 6.3 x 1.6 in)
Weight: <900 g (approx 2 lb)
GENERAL
Additional accessories (supplied) USB cable and Safety Guide
PC interface USB 3.0 (USB 2.0 compatible)
Power requirements Powered from USB port
4-Channel Standard Kit

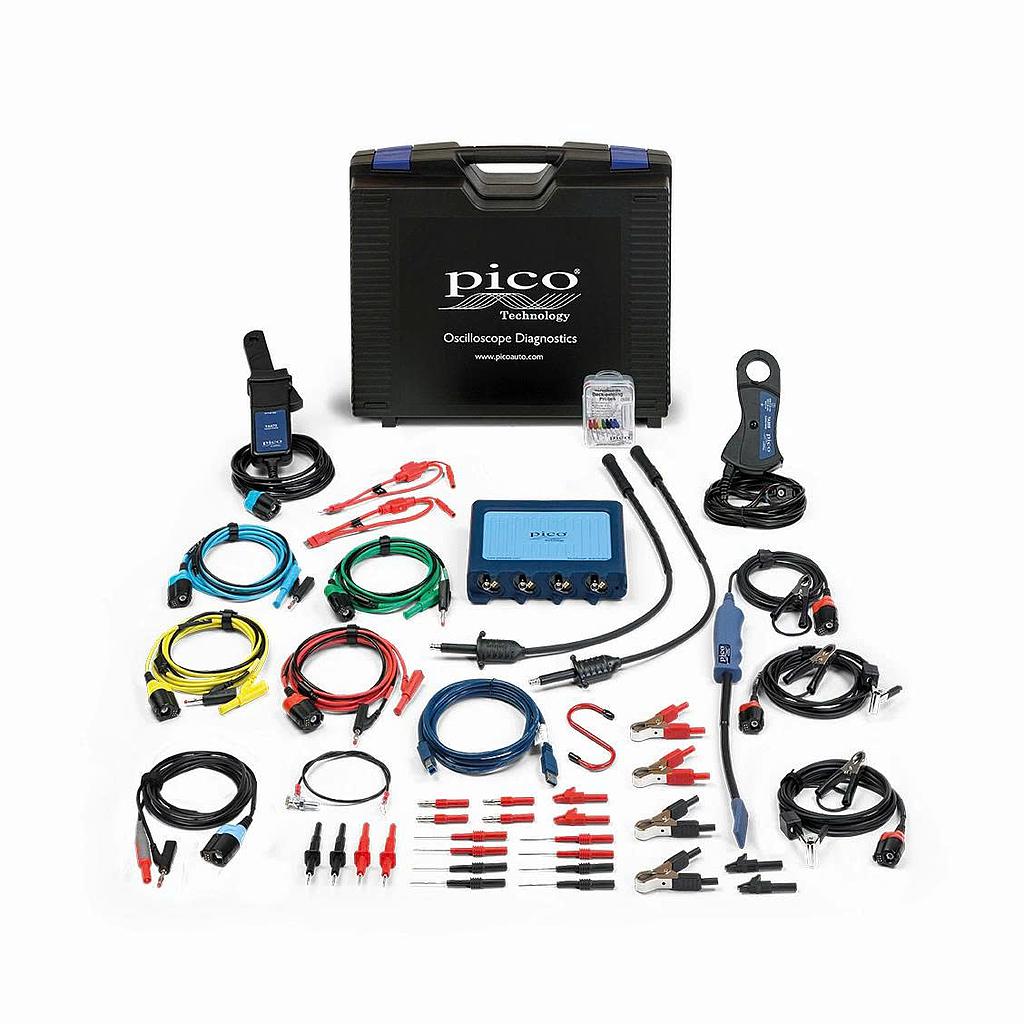

The standard kit is our most popular kit balancing the cost of the kit while providing all the essential functionality needed for effective diagnosis. With the addition of both high and low amps clamps, technicians are equipped for contact and non-intrusive testing of electrical signals. The kit is available in foam ideal for instant access in your existing tool trolley, or a carry case with foam cutouts
