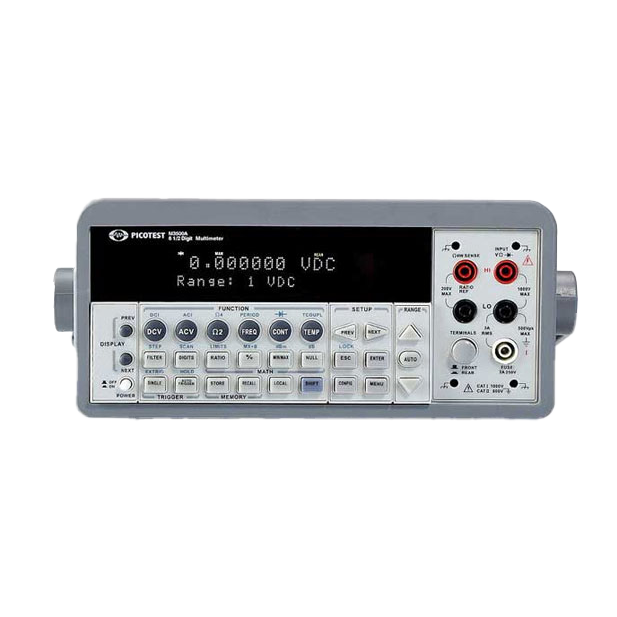

PICOTEST M3500A Digital Multimeter (6 1/2 Digits)

DCV: 0.1V, 1V, 10V, 100V, 1000V

ACV: 0.1V, 1V, 10V, 100V, 750V

DCA: 10mA, 100mA, 1A, 3A

ACA: 1A, 3A

Two and four-wire resistance: 100Ω, 1kΩ, 10kΩ, 100kΩ, 1MΩ, 10MΩ, and 100MΩ.

Frequency: From 3Hz to 300 kHz

Power Supply: 100V/120V/220V/240V ± 10%

Power Line Frequency: 50/60 Hz ± 10%

Power Consumption: 25 VA peak (16 W average)

Operating Temperature: 0°C to 50°C

Operating Humidity: Maximum relative humidity 80% for temperature up to 31°C

Storage Temperature: - 40°C to 70°C

Operating Altitude: Up to 2000m

Bench Dimensions (WxHxD): 224mm x 113mm x 373mm

Weight: 4.36 kg
