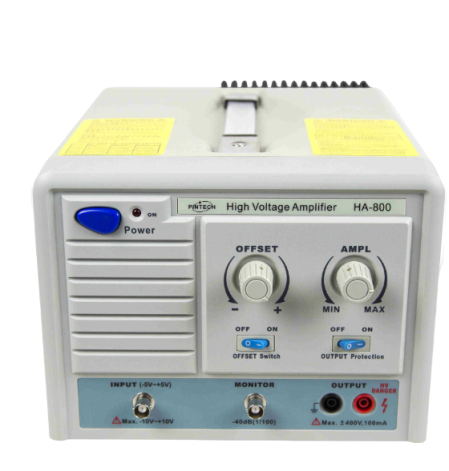

Pintech HA-800 High Voltage Amplifier (200kHz, 800Vp-p)

Output Voltage( DC Max): 400V DC

Output Voltage(AC Max): 800Vp-p

DC Current(Max): 35mA

AC Current(Max): 70mAp-p

Output Power(Max): 14VA

Frequency response (Bandwidth): 200kHz/400Vp-p

Slew Rate: 200V/μs

Output impedance: 100Ω

Protect resistor: 15kΩ/40watt

Safe Loading: ≧11kΩ/800Vp-p

Input Voltage upper limit: 0~10Vp-p/20Vp-p

AMPL: 0~180 (10 turn knob)

OFFEST: 0 or± 400V (10-turnknob switch)

Monitor: 100:1

Output protection:

1. Output dedicated FUSE

2. Protection SW (switch)

Weight: 5.2kg

size: 310*270*95mm
