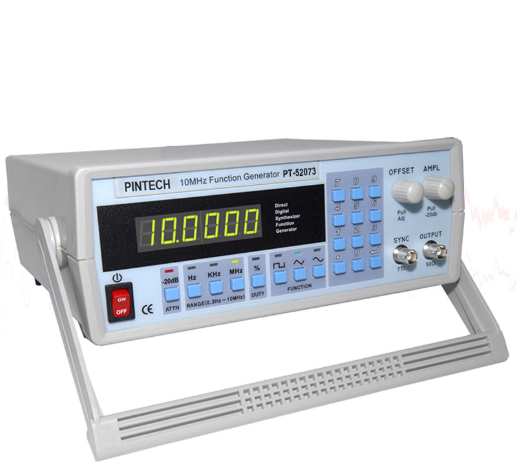

Display: 6digits 0.56" Green LED
Frequency (Sins, Square, Triangle): DC-0.5Hz~10MHz
Range key: 3 ranges（Hz，kHz，Mhz）
Function wave: 3 function(Sins, Square, Triangle)
Frequency:
Stability: ±10PPM
Accuracy: ±10PPM+1 digit
Aging: ±1PPM/1year
Sine wave:
Harmonic distortion: -55dB to 200kHz,-30dB to 10MHz
Flatness: ±0.3dB to 1MHz，±3dB to 10MHz
Triangle wave: ≥98% to 100kHz,≥90% to 10MHz
Square wave:
Level: ±2% to 1MHz,±10% to 10MHz
Rise time: ≦35nS
SYNC output:
Level: ≥3V to 10MHz
Rise time: ≦35nS
Amplitude:
Max. level: 20Vp-p（1MΩ load），10Vp-p（50Ω load
Min. level: 20mVp-p（1MΩ load），10mVp-p（50Ω load
Attenuator: -20dBX2（-40dB）
DC offset: Fix or ADJ（±10V at 1MΩload，±5V at 50Ωload）
RS232 or USB: Built-in
PC control: Frequency,waveform,attenuatorx1
Dimension / net weight: 275(W) X 90(H) X 300(D) mm
