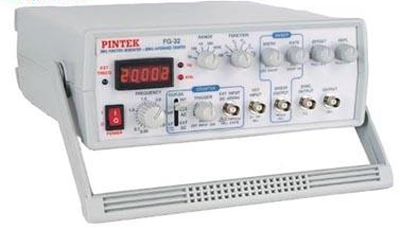

PINTEK FG-32 Function Generator (3MHz ; 6 Function , 6 Range / 60MHz Auto Counter)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
6 FUNCTION,6RANGE.
LINEAR/LOG SWEEP
AUTORANGE COUNTER
0.001Hz RESOLUTION.
AUTO GATETIME.
COUNTER TRIGGER DETECT.
| 1. | GENERAL SPECIFICATIONS: | |
| A: | Generator | |
| Frequency -- 0.5Hz ~ 3MHz with 5-digit LED display, Max. resolution 0.001Hz in 6 steps. | ||
| Waveform output -- Sine, Square, Triangle, Ramp, Positive Pulse and Negative Pulse; 6 waveforms total. | ||
| Stability -- 0.1% ~ 15 minutes after power-on. | ||
| 0.2% ~ 24hrs after power-on. | ||
| B: | Counter | |
| Display -- 5 digits 0.36" red LED. | ||
| Max. Resolution -- 0.001Hz. | ||
| Display unit -- Hz / KHz Automatically controlled by CPU. | ||
| C: | Common Specification | |
| Limits of operation -- 0℃~40℃,10%~80%R.H. | ||
| Storage Environment -- -20℃~70℃,0%~90%R.H. | ||
| Power consumption -- 25W. | ||
| Power source -- AC 115V (±10%)50/60Hz,FUSE:600mA | ||
| AC 230V (±10%)50/60Hz,FUSE:300mA | ||
| Ventilation -- DC 12V / 100mA Fan. | ||
| Dimensions -- 275 x 90 x 300mm | ||
| Weight -- 2.5Kg Net. | ||
| Accessory -- Power cord, operating manual. | ||
| 2. | RAMP WAVE: | |
| Frequency: 0.5Hz ~ 2.5MHz, 5-digit LED display, Max. resolution 0.001Hz, 6 steps selected by rotary switch. | ||
| Symmetry: 80% (Rise wave) to 20% (Fall wave), < 5%, 1Hz ~ 100KHz. | ||
| Rise Wave Linearity: < 2%, 1Hz ~ 100KHz. | ||
| 3. | TRIANGLE WAVE: | |
| Frequency: 0.5Hz ~ 3MHz, 5-digit LED display, Max. resolution 0.001Hz | ||
| Symmetry: 50% (Rise wave) to 50% (Fall wave), < 2%, 1Hz ~ 100KHz. | ||
| 4. | SINE WAVE: | |
| Frequency: 0.5Hz ~ 3MHz, 5-digit LED display, Max. resolution 0.001Hz. | ||
| Distortion: < 2%, 1Hz ~ 100KHz. | ||
| Harmonic Ratio: < 30dB, 100KHz ~ 3MHz | ||
| Frequency Response: < 0.1dB, up to 100KHz. | ||
| < 1dB, 100KHz to 3MHz. | ||
| 5. | SQUARE WAVE: | |
| Frequency: 0.5Hz ~ 3MHz, 5-digit LED display, Max. resolution 0.001Hz. | ||
| Symmetry: 50% (Positive half) to 50% (Negative half). < 2%, 1Hz ~ 100KHz | ||
| Rise Time: < 60ns. | ||
| 6. | POSITIVE PULSE: | |
| Frequency: 0.5Hz ~ 2.5MHz, 5-digit LED display. | ||
| Width: 0.4sec ~ 100ns, continuous adjustment. | ||
| Symmetry: 20% to 80%, < 5%, 1Hz ~ 100KHz. | ||
| Rise Time: < 60ns. | ||
| 7. | NEGATIVE PULSE: | |
| Frequency: 0.5Hz ~ 2.5MHz, 5-digit LED display, Max. resolution 0.001Hz. | ||
| Width: 0.4sec ~ 100ns. | ||
| Symmetry: 80% to 20%, < 5%, 1Hz ~ 100KHz. | ||
| Fall Time: < 60ns. | ||
| 8. | MAIN OUTPUT: | |
| Output Impedance: 50W, < 2% Accuracy | ||
| Max. Output: 20Vp-p (No-load),±1V | ||
| 10Vp-p (50Ω load)±0.5V | ||
| Min. Output: 0.1Vp-p (No-load), or 0.05Vp-p (50Ω load) | ||
| Attenuator: One -20dB Attenuator, < 2% Accuracy | ||
| 9. | SYNCHRONOUS OUTPUT: | |
| Output Impedance: 50Ω, < 2%, Accuracy. | ||
| Output Level: TTL level, > 3Vp-p fixed amplitude. | ||
| Fan Out: > 20 | ||
| Rise Time: < 30nS. | ||
| 10. | VCF INPUT: | |
| Input Voltage: 0 ~ 10V | ||
| Input Frequency: DC ~ 1KHz | ||
| Input Frequency Variance: 1:1 to 1:1000 | ||
| 11. | SWEEP SYNCHRONOUS OUTPUT: | |
| Output Impedance: 1KHz, < 2% | ||
| Output Waveform: Linear or Log sweep ramp wave. | ||
| Output Amplitude: 10Vp-p (No load) or 5Vp-p (1KΩ load) | ||
| Output Frequency: 0.2Hz ~ 100Hz continuous adjustment. | ||
| 12. | SWEEP GENERATOR: | |
| Sweep Form: Linear or Log switchable. | ||
| Sweep Speed: 5sec ~ 10ms, continuous adjustment. | ||
| Sweep Width: 1:1 ~ 1:100 | ||
| 13. | COUNTER: | |
| Display: 5 digits, 0.36" red LED display. | ||
| Max. Resolution: 0.001Hz | ||
| Display unit: Hz / KHz, Auto range. | ||
| Time base: 20MHz | ||
| Temperature coefficient: < 10ppm / ℃ | ||
| Accuracy: < 0.002% | ||
| Power Supply: +5V, 160mA | ||
| Internal Counter: | ||
| Range: Auto range with 4 resolutions, 0.001Hz / 0.01Hz / 0.001KHz / 0.01KHz, Auto control by CPU. | ||
| Display: 0.500Hz ~ 3000.0KHz, Auto select by CPU. | ||
| Gate time: Variable, 0.25sec ~ 2sec, Auto - setting. | ||
| Min. display digits: 4 digits. | ||
| External Counter: | ||
| Max. Input Voltage: < 250Vrms | ||
| Input Impedance: 1MΩ, < 2% | ||
| Input Frequency: 0.2Hz ~ 60MHz | ||
| Attenuator: *20 (-26dB) Attenuator | ||
| Coupling: AC (HF) -- For >100KHz frequency. | ||
| DC (LF) -- With 100KHz filter, for frequency <100KHz | ||
| Range: The same as internal counter. | ||
| Min. display digits: 4 digits. | ||
| Gate Time: 0.25sec ~ 10sec, Auto - setting, depends on the input frequency | ||
| Sensitivity: < 30mVrms (1MHz) | ||
