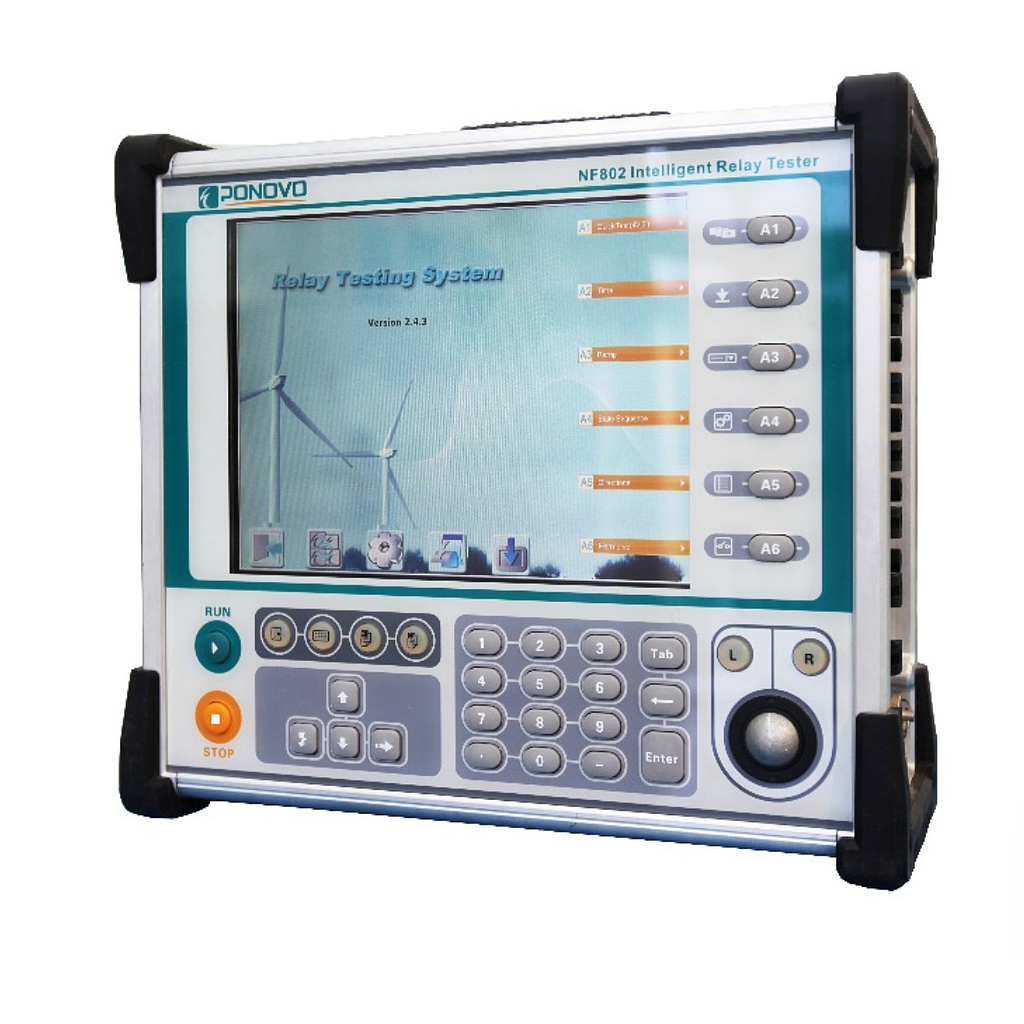

Ponovo NF802 Protection Digital Relay Test Kit

Fiber‐optic communication port:

IEC61850‐9‐2, GOOSE

Type: 100Base‐FX (100Mbit, Fiber, full‐duplex)

Port Number: 8 pairs LC ports

Fiber Type: 62.5/125µm (Multi‐mode Fiber, orange)

Wave Length: 1310nm

Transmission Distance: >1km

12 Low‐level Signal Analog Output

Amplitude Setting Range: AC: 0‐7.07Vrms, DC:0‐10V

Amplitude Accuracy: 0.07‐7.07Vrms: Error<0.2%; 0.02 ‐0.07Vrms: Error< 1%

Amplitude Resolution: 250 μV

Amplitude Distortion (THD+N): <0.1%

Frequency Sine signal: 10‐250Hz

Frequency Transit Signal: DC‐10.0kHz

Frequency Accuracy: 0.002% (Industry Frequency, Error 1mHz)

Frequency Resolution: 0.001Hz

Phase Angle Range: 0 to 359.999°

Phase Accuracy: <0. 1°

Resolution: 0 001°

Main Power

Rated voltage: 220V (AC), 50/60Hz

Range: 100V ‐240V (AC)

Frequency Range: 40‐60Hz

8 Pair of Binary inputs (A‐H)

Input Characteristic: 30V ‐250V (DC) or empty contact (automatic identification)

Sample Rate: 10kHz

Time Resolution: 100µs

Max Measurement Time: 1.50X10^5s

Timing Error: ±1ms (0.001s‐1s); ±0.1%(1s‐1.50x10^5s)

4 Pair Binary Output (1‐4)

Type: Empty contact, regardless of polarity

AC Capacity: Vmax:250V (AC) /lmax:0.5A

DC Capacity: Vmax:250V (DC) /lmax:0.5A

4 Pair Binary Output (5‐8)

Type: Fast contact output, speed of response is 100us

AC Capacity: Vmax:220V (AC) /lmax:0.5A

DC Capacity: Vmax:220V (DC) /lmax:0.5A
