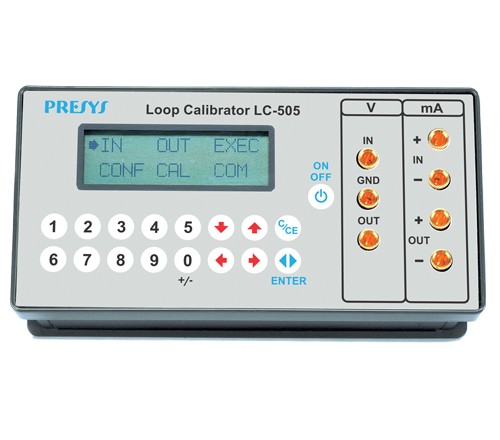

PRESYS LC-505 Loop Calibrator

Input Ranges

volt

-10 to 11 V; Resolution: 0.0001 V; Accuracy: ± 0.02% FS; Remarks: R input>1 MQ

11 to 45 V; Resolution: 0.0001 V; Accuracy: ± 0.02% FS; Remarks: R input>1 MQ

mA

-5 to 24.5 mA; Resolution: 0.0001 mA; Accuracy: ± 0.02% FS; Remarks: R input < 160

Output Ranges

volt

-1 to 11 V; Resolution: 0.0001 V; Accuracy: ± 0.02 % FS; Remarks: R output < 0.3 Ω

0 to 22 mA; Resolution: 0.0001 mA; Accuracy: ± 0.02 % FS; Remarks: R maximum =700 Ω

mA

Two-wire transmitter (XTR)

4 to 22 mA; Resolution: 0.0001 mA; Accuracy: ± 0.02 % FS; Remarks: R maximum = 60V

Serial Communication: Modbus® RTU Protocol (RS-232/ RS-485)

Dimensions: 56 mm x 144 mm x 72 mm (HxWxD)

Weight: 0.6 kg approx.
