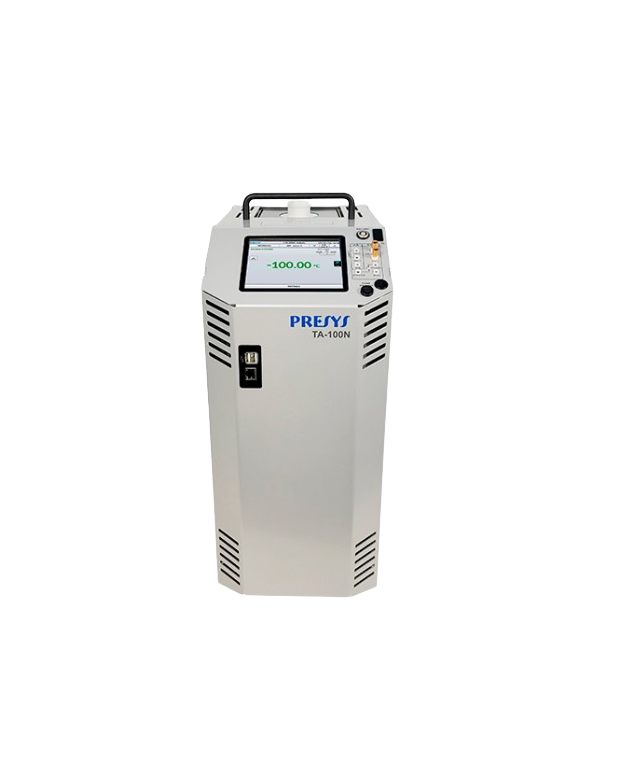

PRESYS TA-100N-2-IN10-NH-NP Temperature Calibrator Dry Block (-100 ºC ~ 40 ºC)

Power Supply: 230 Vac

Included Insert: Others, under ordering

Hart Communication: No Hart Communication

Profibus Communication: No Profibus Communication

Operating Range: -100 ºC to 40 ºC

Display Accuracy: ± 0.1 °C full range

Resolution: 0.01 °C

Stability: ± 0.01 °C all range

Axial Uniformity (40 mm):

± 0.20 °C @ -90 °C

± 0.11 °C @ -30 °C

± 0.02 °C @ 40 °C

Radial Uniformity:

± 0.025 °C @ -90 °C

± 0.01 °C @ -30 °C

± 0.01 °C @ 40 °C

Heating Time: 10 min (25 °C to 40 °C)

Cooling Time:

60 min (25 °C to -90 °C)

80 min (25 °C to -100 °C)

Well Depth:

Insert depth: 150 mm

Total depth with isolator: 230 mm

Insert Diameter: Ø 35 mm

Weight: 12.0 kg

Dimensions (HxWxD): 500 x 229 x 350 mm
