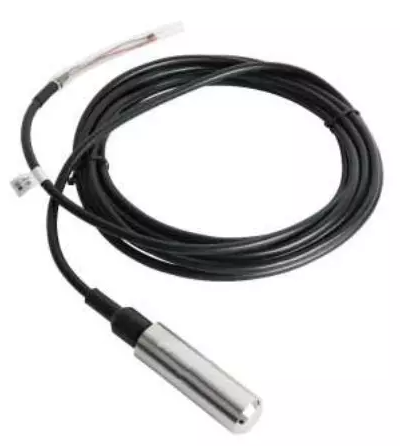

Probest PT-30 Hydrostatic Level Gauge (0~1m...200m Water column)

Power: RS485 output (8-32V)；

Output: RS485

Accuracy: 0.5 Level

Range: 0~1m...200m Water column

Pressure type: Gauge pressure

Compensation temp.: -10℃-70℃

Operating temp.: -20℃-85℃

Medium temp.: -20℃-85℃

Storage temp.: -40℃-85℃

Zero output temp. drift: ±0.3% FS/10℃

Full range output temp. drift: ±0.3% FS/10℃

Overload pressure: 150% FS

Long-term stability: ±0.2% FS/Year

Response time: RS485 output pressure ≤ 100ms  (increase to 90％ FS)

Insulation resistance: 500MΩ/100VDC

Protection class: Probe: IP68, Wiring part: IP65

Load resistance: (U-9V)/0.02A ，U ：Power voltage

Material: 316L

Size: Φ27mm*138mm
