PROCEQ Equostat 3 Metal Hardness Tester

Name: PROCEQ Equostat 3 Metal Hardness Tester
Brand: PROCEQ

ManufacturerPROCEQ(View more products from this manufacturer)

ModelEquostat 3

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Maker: Proceq
Model: Equostat 3

The Equostat 3 was developed for accurate, rapid and reproducible metal hardness testing. It features excellent sensitivity through small penetration of a few µm and is therefore particularly suited for testingmetal hardness of surface layers on scratch-sensitive and polished parts or on thin parts, profiles and pipes with a wall thickness that is below 2 mm (0.08”).

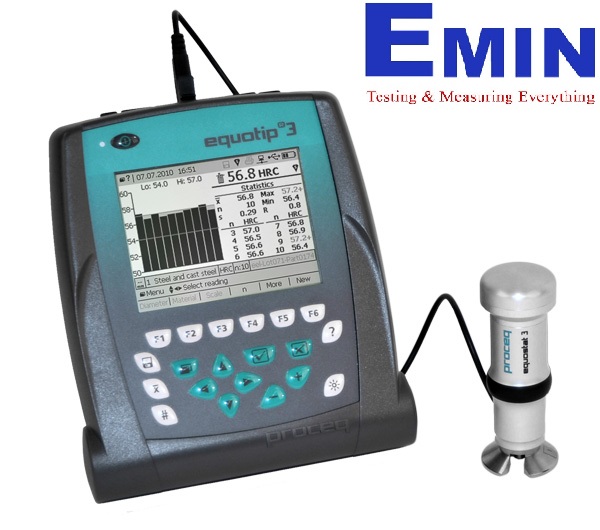

The Equostat 3 works well in outdoor, factory and lab environments. It has only very few requirements on test piece geometries. The Equostat 3 probe can be connected directly to a laptop or a PC. Alternatively, the probe plugs into the Equotip 3 indicating device to combine the Rockwell principle of Equostat with the Leeb rebound principle of Equotip 3 to become the most versatile hardness tester. Live user guidance dialogs enable the user to obtain very accurate and highly reproducible measurements

Applications

Precise metal hardness testing of very soft materials through to very hard materials
Thin parts, profiles and pipes of a wall thickness ≤ 2 mm, sheets, coiled metal, as well as parts as thin as 0.2 mm (0.008”), depending on the hardness level
Testing on scratch-sensitive or polished surfaces
Metal hardness testing of heat-affected zones near welding seams

Proceq offers accessories such as a measuring clamp or several support feet adapt to freehand hardness measurements on various test piece geometries

Features

Accurate, rapid and reproducible metal hardness readings
Measurements are independent of the material and sample dimensions
Testing range from very soft (aluminum) up to very hard materials (case-hardened steel)
Measurement in HRC, integrated conversions to HV, HB, HRA, HRB, HR15N, Rm possible
Transfer of up to ~100000 stored readings from the Equotip 3 indicating device to a PC using Equolink 3
Small test load yields small penetrations of only a few μm
The Equostat 3 probe can be used in either a clamp or freehand
In addition to the Equostat 3 probe, all the impact devices of the Equotip metal hardness tester can be used to also conduct rebound hardness testing with the same indicating device

Standardization

DIN 50157 (2007)
ISO 18265 (2003)
ASTM B724
ASTM E140 (2007)
DGZfP Guideline MC 1 (2008)
VDI / VDE Guideline 2616 Paper 1 (2010)

Technical Data

Equostat 3 Probe
Measuring range (DIN)	0-100 µm; 19-70 HRC; 19-70 HMMRC; 67-638 HB; 35-950 HV; 60-86 HRA; 29-107 HRB; 225-2250 MPa (N/mm2); 69-94 HR15N; 88-96 HR15T
Resolution	0.1 µm; 0.1 HRA; 0.1 HRB; 0.1 HRC; 0.1 HRE; 0.1 HRH; 0.1 HR15N; 0.1 HR15T; 1 HB; 1 HV; 0.1 HS; 1 MPa (N/mm2)
Measuring accuracy	± 0.8 µm (~ ± 1.0 HRC) over entire range
Maximum test hardness	70 HRC
Test direction	any direction (no correction required)
Test loads	preload 10 N / total load 50 N
Diamond indenter	angle (100.0±0.5)°, diameter of flat area of (60±0.5)µm

Metal hardness tester Equotip 3 indicating device:
Dimensions	170 x 200 x 45 mm (6.7 x 7.9 x 1.8 inches)
Weight	780 g (27.5 ounces) plus battery pack 120 g (4.2 ounces)
Display	large QVGA LCD with adjustable contrast and backlight
Internal data storage	100000 - 1000000 values (depending on data type)
Interface	Ethernet, USB 1.1, RS 232
Battery type	rechargeable Li ion or 3 standard size “C” cells
Battery max. charge voltage	4.2 V
Battery operation period	typically 10 hours
Operating temperature	0 to + 50 °C (32 to 122 °F)
Humidity	non-condensing, 90% max
