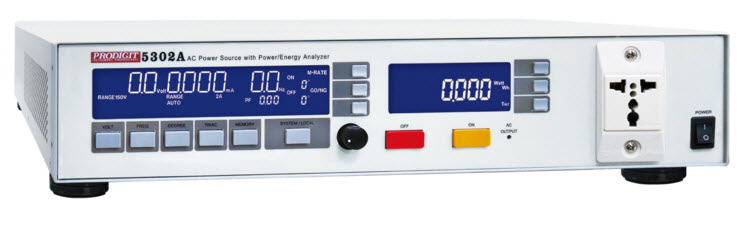

Prodigit 5302A AC Power Source with Power/Energy Analyzer (270VA,1Ø)

Power: 270VAmax
Type: Linear
Voltage Rating: 50~150Vrms/160~305Vrms
Accuracy: 0.2% ± 0.2% F.S.
Resolution: 0.1V/0.2V
Distortion: THD≤0.5%(R load)
Load Regulation: ±0.5%±0.5V
Line Regulation: ±0.5%±0.5V
Current Rating: 2.0Arms/1.0Arms
Frequency: 40~70Hz
Resolution: 0.1Hz
Triac Mode: Leading/Trailing Edge
Range: 0~180º
Resolution: 1º
Angle(ON/OFF): 0~360º
Resolution: 1º
Protections: OCP,OTP,OPP,Short
Measurements:
ACV meter(Vrms): 150V/305V
Resolution: 0.1V
Accuracy: ±0.5%
ACA meter(Arms): 10mA/20mA/200mA/2000mA/200A
Resolution: 0.01mA/0.01mA/0.1mA/1mA/0.1A
Accuracy: ±0.5%/±2%
ACW meter: 1.5W/3W/6W/30W/60W/300W/600W
Resolution: 0.001W/0.001W/0.001W/0.01W/0.01W/0.1W/0.1W
Accuracy: ±0.5%
DCW meter: Same as 3310F series
PF meter: ±0.01~1.00
Resolution: 0.01
Accuracy: 1%
Frequency meter: 40~70Hz
Resolution: 0.1Hz
Accuracy: ±0.1Hz
Interface: RS-232
External AC Source: 300Vrms/2A/600VA
Input AC power: 115/230Vac, 50/60Hz
Cooling: Advanced Fan Cooled

Datasheet
