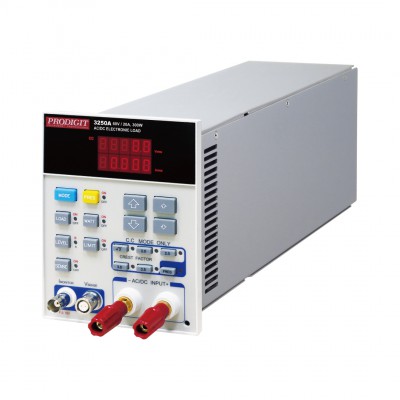

PRODIGIT 3250A AC/DC Electronic Load

Power input: 300VA
Current input: 20Arms
Voltage input: 60Vrms

Display: V, A, W, VA

Option mainframe:

- 3302C: single channel mainframe

- 3302C-01: single channel mainframe; GPIB

- 3300C: four channel mainframe

- 3300C-01: four channel mainframe ; GPIB

Mainframe: 3302C, 3302C-01

Mainframe: 3300C, 3300C-01

Feature

- Voltage, Current Watt and VA display

- CC, Linear CC, CR and Crest Factor mode

- Can be configured in 3302C or 3300C series Mainframe

- Power Factor (PF) adjustable: 1, 0.85~ -0.85

- Threshold Upper/Lower limit capability

- Protections against V, I, W, and ℃.

- Dual 4 1/2 Meter Display for Voltage, Current, Watt and VA

- Suitable for Sine, Square, Step wave

Description

- The 3250 series AC&DC Load Module is suitable for Sine, Square, Step wave testing which provides an idea testing solution for UPS, AVR, D/A inverter, especially for step or square waveform U.U.T.

- The 3250 series Module has it own control and display panel, and with 5 states Store / Recall memory which provides load set-up more efficiently. The 3250 Series combined with 3302C or 3300C mainframe is ideal for production. Quality control and Incoming Inspection; providing 5 programmable front panel memory locations and GO/NG test function capabilities.

- Adjustable power factor setting (PF, Range: 1, 0.85~ -0.85 ) extends the simulation of test environment.

- Built-in GO/NG meter check function offers brief test result diagnosis for production, QC test throughput.

- 3250 Series are suitable for AC/DC, DC/DC, DC/AC testing, UPS output loading test, DC, 40~70Hz Power Transformer, and can be parallel more units for higher power, R&D, QC, Production testing and ATE System application.
