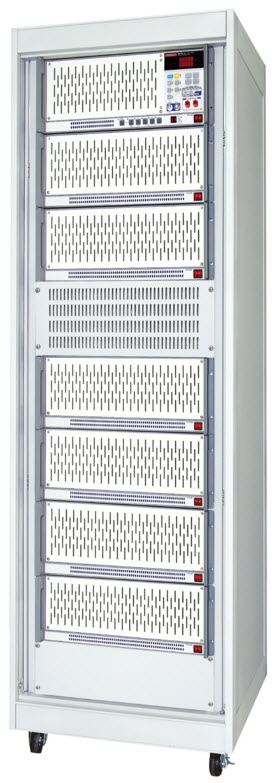

Prodigit 32616A AC & DC Electronic Load (12600VA,126Arms,300Vrms)

Power: 12600VA
Current: 126Arms
Voltage: 50~300Vrms
Protections:
Over Power Protection: 13230VA
Over Current Protection: 132.3A
Over Voltage Protection: 315V
Over Temp Protection: 85
CC mode:
Range: 0~63A/63~126A
Resolution: 15.75mA/31.5mA
Accuracy: ±0.5%
Low Current Accuracy: 0~6.3A
CR mode:
Range: 0.476~1.904Ω/1.904~7.616KΩ
Resolution: 0.525mS/0.131mS
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 300V, ±0.5%
Current : 126A, ±0.5%
Power : 12600W, ±0.5%
Dimension (HxWxD): 1778x596x600mm
Weight: 230.5 kg
Input: 115/230Vac, 50/60Hz
