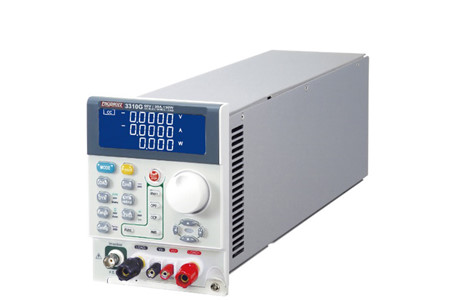

Prodigit 3310G DC Electronic Load (90A, 60V, 450W)

Power 150W, 450W max
Current 30A, 90A max.
Voltage 60V
PROTECTIONS
Over Power Protection(OPP) 105%
Over Current Protection(OCP) 105%
Over Voltage Protection(OVP) 105%
Over Temp Protection(OTP) yes
Constant Current Mode
Range: 0 ~ 3A, 0 ~ 30A
Resolution 0.05mA, 0.5mA
Accuracy 0.1%
Constant Resistance Mode
Range 2~120KΩ, 0.02Ω~2Ω
Resolution: 0.00833mS, 0.033mΩ
Accuracy ± 0.2%
Constant Voltage Mode
Range 0 ~ 6V , 0 ~ 60V
Resolution 0.0001V, 0.001V
Accuracy ± 0.05%
Constant Power Mode
Range 0 ~ 15W, 0 ~ 150W
Resolution 0.00025W , 0.0025W
Accuracy ± 0.5%
Constant Current + Constant Voltage Mode
Range 60V, 30A
Resolution 0.001V, 0.5mA
Accuracy 1%
Constant Power + Constant VoltageMode
Range 60V, 150W
Resolution 0.001V, 0.0025W
Accuracy 1%
Dimension(HxWxD): 143 x 108 x 412 mm
