MaxPower: 75W
CurrentMax: 15A
Operating voltage: 60V
Display: V, A,W
Option mainframe:
- 3302F: Mainframe for Single load module, 150 Store/Recall Memory Without RS232 & GPIB
- 3302C: Mainframe for single load module, with RS232C, 150 Store/Recall Memory W/O GPIB
- 3302C(GPIB) : Mainframe for single load module, with RS232C, 150 Store/Recall Memory with GPIB
- 3301A: Quad module mainframe, 5 Store/Recall Memory W/O GPIB
- 3301A (GPIB) : Quad module mainframe, 5 Store/Recall Memory with GPIB
Mainframe: 3302C, 3302F
Feature
- CC Static, Short Mode
- Dual 4 1/2 V/A Meter on each module
- 3 Ranges Current Slew Rate control capability
- Can be configured in 3302 single or 3301A 4ch Mainframe with 5 states Memory Store / Recall on each Module
- Protections against V, W, and T
Description

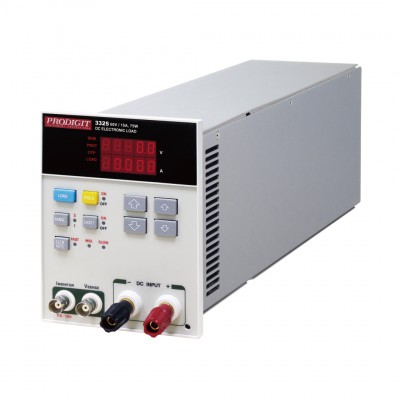

- 3320 series module are used with the 3302 single and 3301A 4ch Mainframes.
- Each 3320 series module has its own control and display panel with constant current operating mode.
- 5 states Store/Recall memory on 3302 and 3301A mainframe which provides load set-up more efficiently.
- Optional Vsense Control Switches and disable SHORT keys are available.
- 3320 Series suitable for Voltage source testing, SMPS Load Regulation, Power Supply Life testing, Short circuit Testing, Battery discharge, Production Line, and QC, Burn-in.
