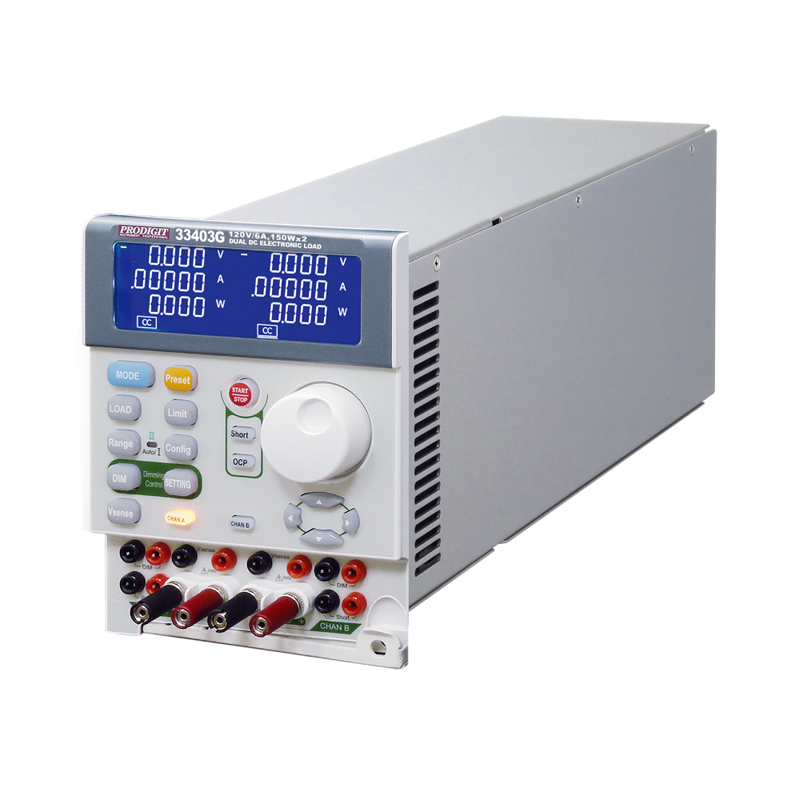

PRODIGIT 33403G LED DC Electronic Load Simulator (120V, 6A, 150Wx2)

Power: 150Wx2

Current: 0~1.5A: 0~6A

Voltage: 0~120V

Min.Operation Voltage: 1.8V at 6A

-CC mode

+Range: 0~1.5A; 0~6A

+Resolution: 0.025mA; 0.1mA

+Accuracy: 0.1%

-CR mode

+Range: CRL: CRL:0.2Ω~2.4KΩ (60V); CRH:0.4Ω~4.8KΩ (120V)

+Resolution: 83.333μS; 41.666μS

+Accuracy: ±0.2%

-CV mode

+Range: 12V / 60V / 120V

+Resolution: 0.2mV / 1mV / 2mV

+Accuracy: ±0.05%

-CP mode

+Range: NA

+Resolution: NA

+Accuracy: NA

-LED mode

+Vo Voltage range: LEDL: 12V / LEDM : 60V / LEDH : 120V

+Rd Resistance range:

LEDL : 0.2 ~ 240Ω at Vo-Vd = 0~1.2V

LEDL : 2 ~ 2.4KΩ at Vo-Vd = 1.2~12V

LEDM : 1 ~ 1.2KΩ at Vo-Vd = 0~12V

LEDM : 10 ~ 12KΩ at Vo-Vd = 12~60V

LEDH : 2 ~ 2.4KΩ at Vo-Vd = 0~60V

LEDH : 20 ~ 24KΩ at Vo-Vd = 60~120V

+Resolution: 16 bits

+Accuracy: Vd: ±(0.05% of setting + 0.1% of range); Rd: ±(0.05% of setting + 0.1% of range)

- Option (necessary) : 3302F- single channel mainframe ; 3305F- two channels mainframe ; 3300F- four channels mainframe

- Optional interface : GPIB, RS232, USB, LAN
