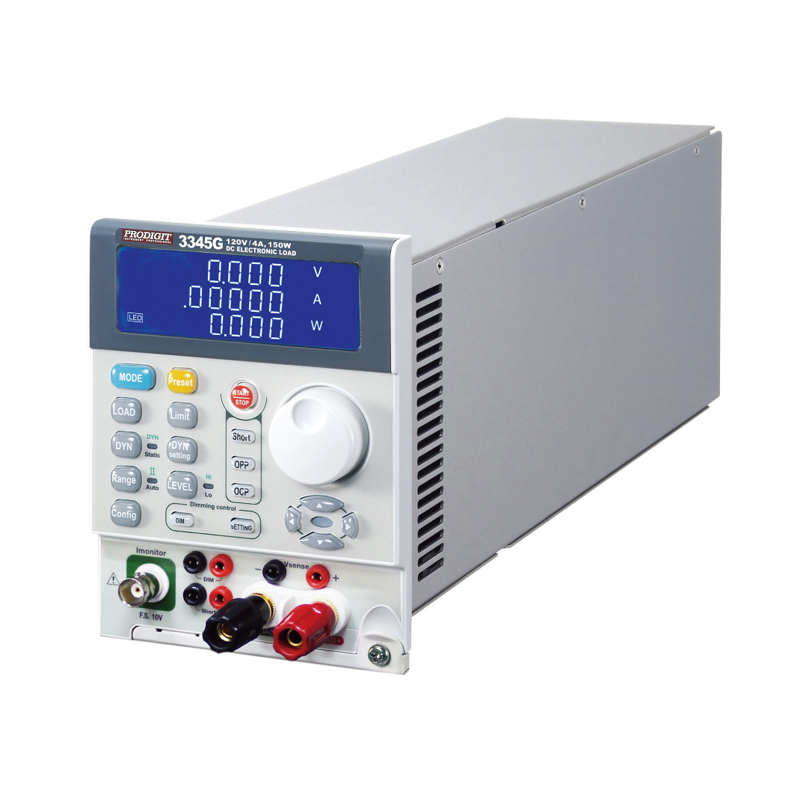

PRODIGIT 3345G LED DC Electronic Load Simulator (120V, 4A, 150W)

Power: 150W

Current: 0~1.2A; 0~4A

Voltage: 0~120V

Min.Operation Voltage: 3V at 4A

-CC mode

+Range: 0~1.2A; 0~4A

+Resolution: 0.02mA; 0.08mA

+Accuracy: 0.1%

-CR mode

+Range: CRL: 0.75Ω~750Ω (60V); CRH: 1.5Ω~1.5KΩ

+Resolution: 66.666µS; 33.333µS

+Accuracy: ±0.2%

-CV mode

+Range: 30V / 60V / 120V

+Resolution: 0.0005V / 0.001V / 0.002V

+Accuracy: ±0.05%

-CP mode

+Range: 0~150W

+Resolution: 0.0025W

+Accuracy: ±0.5%.

-LED mode

+Vo Voltage range: LEDL:30V/LEDM:60V/LEDH:120V

+Rd Resistance range:

LEDL:0.625~0.75KΩ at Vo-Vd=0~3V

LEDL:6.25~7.5KΩ at Vo-Vd=3~30V

LEDM:1.25~1.5KΩ at Vo-Vd=0~6V

LEDM:12.5~15KΩ at Vo-Vd=6~60V

LEDH:2.5~3KΩ at Vo-Vd=0~12V

LEDH:25~30KΩ at Vo-Vd=12~120V

+Resolution: 16 bits

+Accuracy: Vd: ±(0.05% of setting + 0.1% of range); Rd: ±(0.05% of setting + 0.1% of range)

- Option (necessary) : 3302F- single channel mainframe ; 3305F- two channels mainframe ; 3300F- four channels mainframe

- Optional interface: GPIB, RS232, USB, LAN
