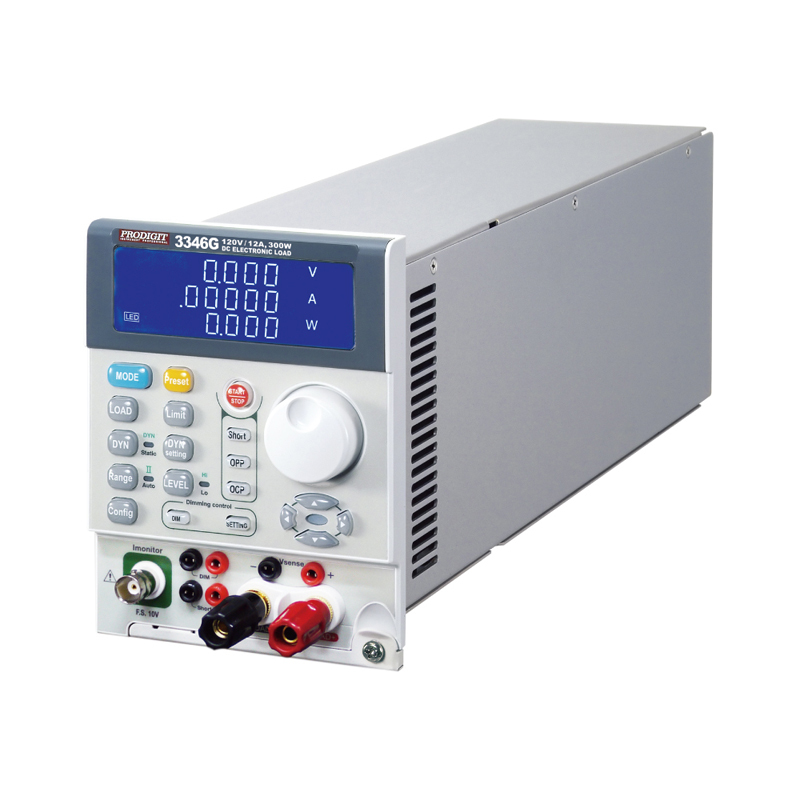

PRODIGIT 3346G LED DC Electronic Load Simulator (120V, 12A, 300W)

Power: 300W

Current: 0~3A; 0~12A

Voltage: 0~120V

Min.Operation Voltage: 1.5V at 12A

-CC mode

+Range: 0~3A; 0~12A

+Resolution: 0.05mA; 0.2mA

+Accuracy: 0.1%

-CR mode

+Range: CRL: 0.1Ω~1.2KΩ (60V); CRH: 0.2Ω~2.4KΩ

+Resolution: 166.666µS; 83.333µS

+Accuracy: ±0.2%

-CV mode

+Range: 12V/60V/120V

+Resolution: 0.2mV / 1mV / 2mV

+Accuracy: ±0.05%

-CP mode

+Range: 0~300W

+Resolution: 0.005W

+Accuracy: ±0.5%.

-LED mode

+Vo Voltage range: LEDL:12V / LEDM:60V / LEDH:120V

+Rd Resistance range:

LEDL:0.1~120 Ω at Vo-Vd = 0~1.2V

LEDL :1~1.2KΩ at Vo-Vd = 1.2~12V

LEDM:0.5~600Ω at Vo-Vd = 0~12V

LEDM:5~6KΩ at Vo-Vd = 12~60V

LEDH:1~1.2KΩ at Vo-Vd = 0~60V

LEDH:10~12KΩ at Vo-Vd = 60~120V

+Resolution: 16 bits

+Accuracy: Vd: ±(0.05% of setting + 0.1% of range); Rd: ±(0.05% of setting + 0.1% of range)

- Option (necessary) : 3302F- single channel mainframe ; 3305F- two channels mainframe ; 3300F- four channels mainframe

- Optional interface: GPIB, RS232, USB, LAN
