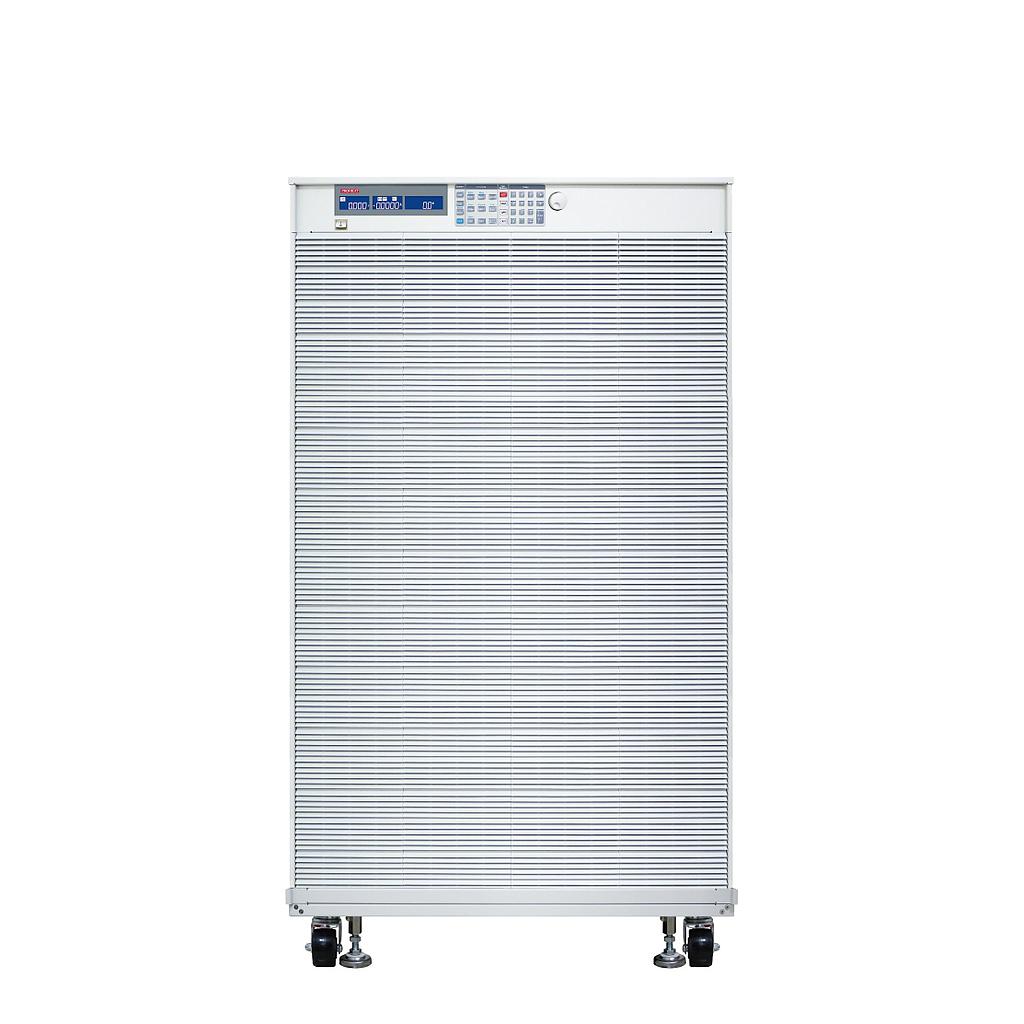

PRODIGIT 36360E Compact High Power DC Electronic Load (1250V, 300A, 60KW)

Power: 60KW

Current: 0~30A/0~300A

Voltage: 0~1250V

Protections:

Over Power Protection (OPP): 105%

Over Current Protection (OCP): 104%

Over Voltage Protection (OVP): 104%

Over Temp Protection (OTP): Yes

CC mode:

Range: 0~30A/0~300A

Resolution: 0.42mA/4.2mA

Accuracy: ±(0.1% of Setting + 0.2% of Range)

CR mode:

Range: 5004Ω ~ 4.17Ω/4.17Ω ~ 0.21Ω

Resolution: 3.9968μS/0.07mΩ

Accuracy: ±0.2%

CV modes:

Range: 1250V

Resolution: 20mV

Accuracy: ±0.05%

CP mode:

Range: 6000W/60000W

Resolution: 96mW/960mW

Accuracy: ±0.5%

Measurement mode (Load):

Voltage: 0 ~ 125V/250~1250V, ±0.025 %

Current : 0 ~ 26.25A/26.25~250A, ±0.1%

Power : 10000W/60000W, ±0.125%

Short circuit current: 300A

Dimension (HxWxD): 1508 x 853 x 766mm

Weight: 630kg

Optional interface: GPIB, RS296, USB, LAN
