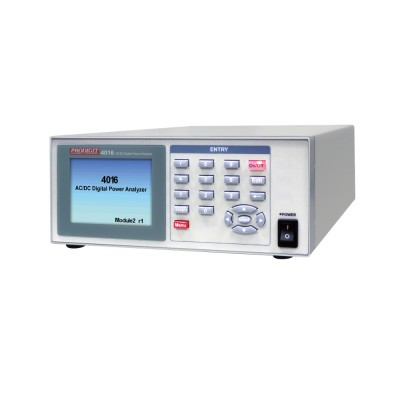

Prodigit 4016 AC / DC Digital Power Analyzer (800Vp, 20Arms / 200Ap)

Voltage Ranges:

20Vpeak /0.001V,40Vpeak /0.001V,80Vpeak /0.01V

200Vpeak /0.01V,400Vpeak /0.01V,800Vpeak /0.1V

18 Selectable Current Ranges:

0.002Apeak / 0.1uA

0.004Apeak / 0.1uA

0.008Apeak / 0.001mA

0.02Apeak / 0.001mA

0.04Apeak / 0.001mA

0.08Apeak / 0.01mA

0.2Apeak / 0.01mA

0.4Apeak / 0.01mA

0.8Apeak / 0.1mA

2Apeak / 0.1mA

4Apeak / 0.1mA

8Apeak / 0.001A

10Apeak / 0.001A

20Apeak / 0.001A

40Apeak / 0.001A

50Apeak / 0.001A

100Apeak / 0.01A

200Apeak / 0.01A

Voltage/Current Frequency Range : DC, 20~1000HZ

Input Range: up to 800Vpeak / 200Apeak

Current resolution: 0.1uA

Display: 3.5-inch color LCD digital numeral and graphic (TFT) display

Data Logger mode:

- Up to 256 records for Vrms / Arms / Watt / PF / VTHD

measurements

- External PC for no-limit records q'ty for long-term quality

monitoring

- Built-in power switch to control

- Inrush Current and Voltage measurement

- Optional Interface:GPIB、RS232、USB、LAN
