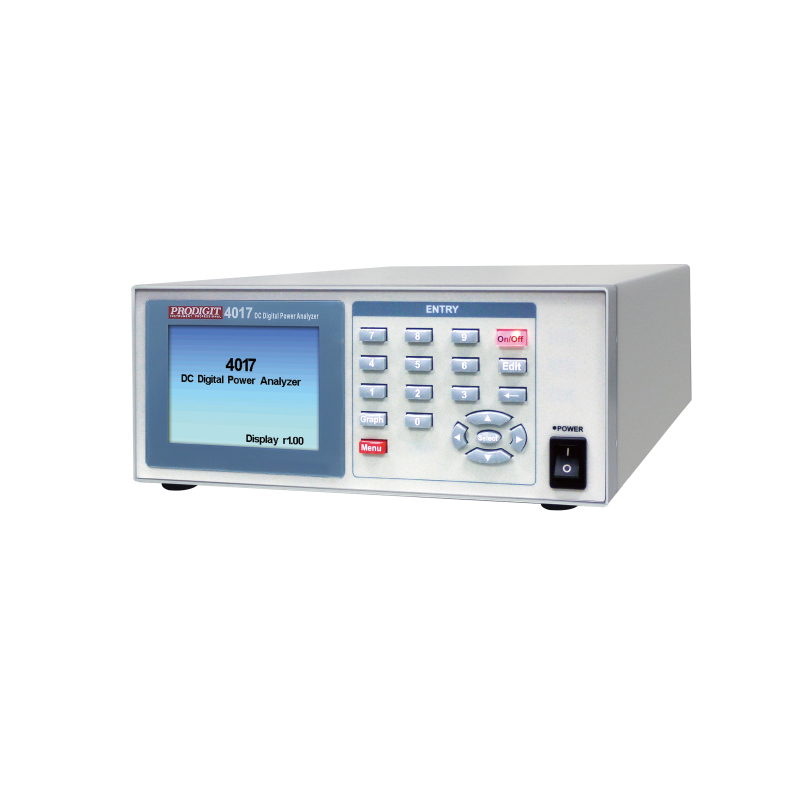

PRODIGIT 4017 DC Digital Power Analyzer (100Vp, 12Adc / 60Ap)

Voltage Ranges:

2.5 VDC / 0.1mV

5 VDC / 0.1mV

10 VDC / 1mV

25 VDC / 0.001V

50 VDC / 0.001V

100 VDC / 0.01V

18 Selectable Current Ranges:

0.375m ADC / 0.01uA

0.75m ADC / 0.1uA

1.5m ADC / 0.1uA

3.75m ADC / 0.1uA

7.5m ADC / 0.001mA

15mA ADC / 0.001mA

0.0375 ADC / 0.001mA

0.075 ADC / 0.01mA

0.15 ADC / 0.01mA

0.375 ADC / 0.01mA

0.75 ADC / 0.1mA

1.5 ADC / 0.1mA

3 ADC / 0.1mA

6 ADC / 0.1mA

12 ADC / 0.001A

15 Apeak/ 0.001A〈800ms〉

30 Apeak / 0.001A〈400ms〉

60 Apeak / 0.001A〈200ms〉

Input Range: 100 VDC / 6 ADC

Current resolution: 0.1uA

Minimum current range: 0.375mA

Display: 3.5-inch color LCD digital numeral and graphic (TFT) display

Data Logger mode:

- Up to 256 records for VDC, ADC, Watt measurements

- External PC for no-limit records q'ty for long-term quality

monitoring

- Built-in power switch to control

- Inrush Current and Voltage measurement

- Optional Interface:GPIB、RS232、USB、LAN
