Data Rates Supported: PWM G1 to G7, High Speed Gear 1, Gear 2, Gear 3 and Gear 4, RateAandB, Gear 5 Rate A and B
Link width: Configurable for 1TX/1RX or 2TX/2RX
Lanes supported: Two data lanes (2 TX and 2 RX)
Probes:
+ Solder Down Active Probes (Standard)
+ CTLE Probes(Solder Down/mSMP) , Power Divider , Raised PCB Interposer
Protocol Decode: UFS, MPHY and UniPro layers
Protocol supported:
UFS v2.1/v2.2/3.1/4.0
MPHY 3.0/4.0/4.1/5.0
UniPro 1.6/1.8/2.0
Signal swing: 400mV
Trace Capture Size: Supports Continuous streaming of Protocol data to Host computerSSD/HDD. Internal acquisition memory of 16GB expandable upto64GB
Trigger: Based MPHY, UniPro, UFS Packets

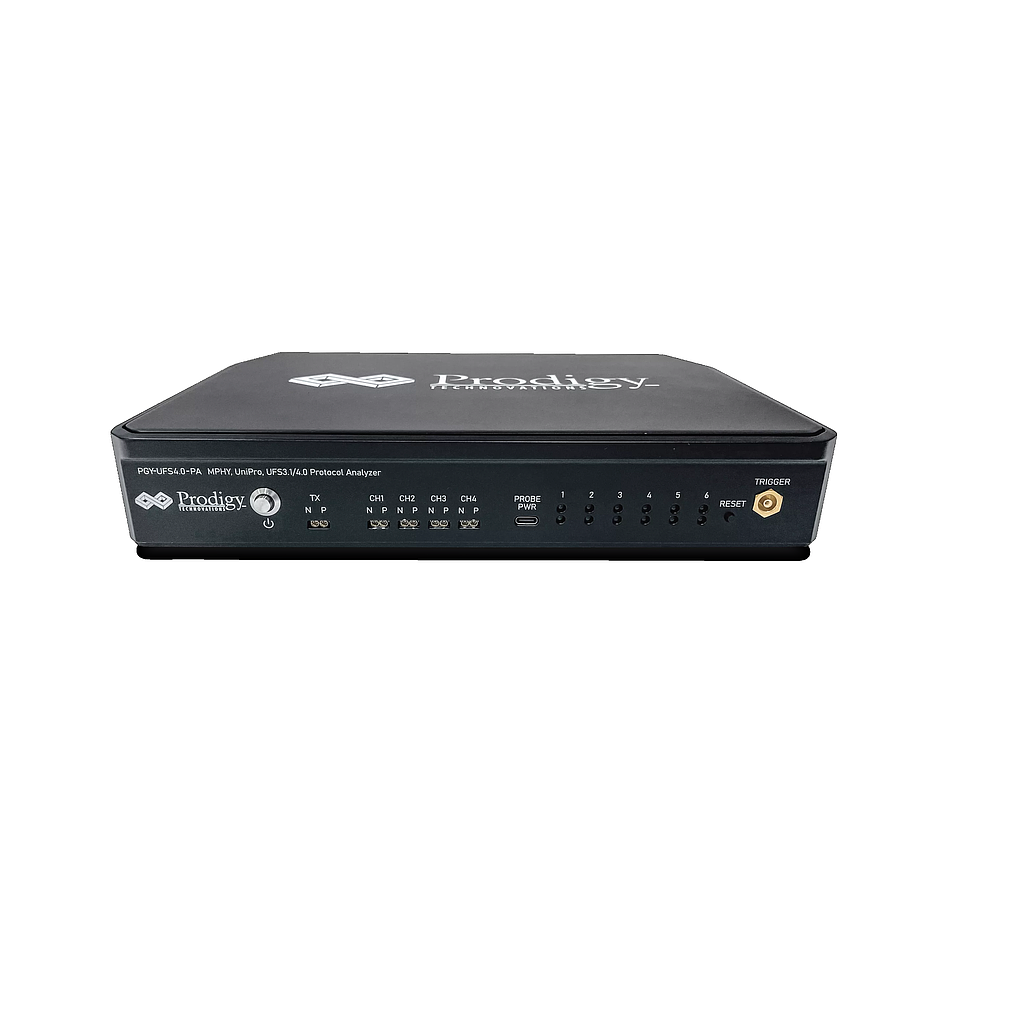

Front Panel Connectors: Interface for Active probes. Trigger in/out SMA connectors
Interface for Host Computer: USB3.0 and Gigabit Ethernet interface
Host Computer Requirements: Windows 7/8.0/8.1/10 64bit operating System. It supports aRAMofminimum 8GB, but the product would give a faster response for a32GB. The minimum storage capacity of 100GB should be available intheharddisk drive. User can use more storage based on trace storage requirement. Display resolution of the monitor is 1024X768. Host computer shouldsupport USB3.0 or GBe interface.
Temperature:
+ Operating: +0 °C to +50 °C (32 °F to 122 °F)
+ Non - Operating: -20 °C to +60 °C (-4 °F to 140 °F)
Dimension (W x H x D): (20.5X5X25) cms
Weight: Approx. 2.5Kg
Power Requirement: 12V, 3A DC Power Supply (AC/DC Supplied along with Analyzer)
ESD: Regulatory CE marked and RoHS compliant
