Cable types tested RJ45 Lan cable Cat 5、5e、6、7 (UTP/STP)、RJ11/12
Telephone cable Cat 3 (2/4/6 pin)、Coaxial cable & normal
solid/Stranded wire by alligator clips patch cord
Cable test
modes 1 KHz two-note tones for location and isolating cables, wire
mapping for validate (detects wire continuity, shorts, opens, miswired,
crossover) and open length tested.
Measurement technology Cable capacitance method
Max. distance to opens for test 1,200 meter (4,000 feet/1,300 yard)
Min. distance to opens for test Split pairs：1 meter (3 feet)、Other cable：1.25 meter (4 feet)
Typical accuracy of length test ±3.0% (±0.5 meter/ ±1.5 feet/ ±0.5 yard)
Calibration accuracy of length test ±2.0% (±0.5 meter/ ±1.5 feet/ ±0.5 yard), standard cable ＞10 meter
Resolution & Unit of length test 0.1 meter/ feet/ yard, Rate：1~3 sec./time
Calibrating parameters memory 1~7 sets, allowing rewrite by new calibrating parameters
Max. distance of transmission & cable map ≧3 km(1 kHz) & 300 m
Cable map & Shielded indication LCD 1~8 & G
Other functions Continuity test, Live telecommunication equipment
test and router tes, Voltage protection AC 60V or DC 48V, Auto power
off, Low battery display
Dimension (L×W×D)
138×80×35 mm

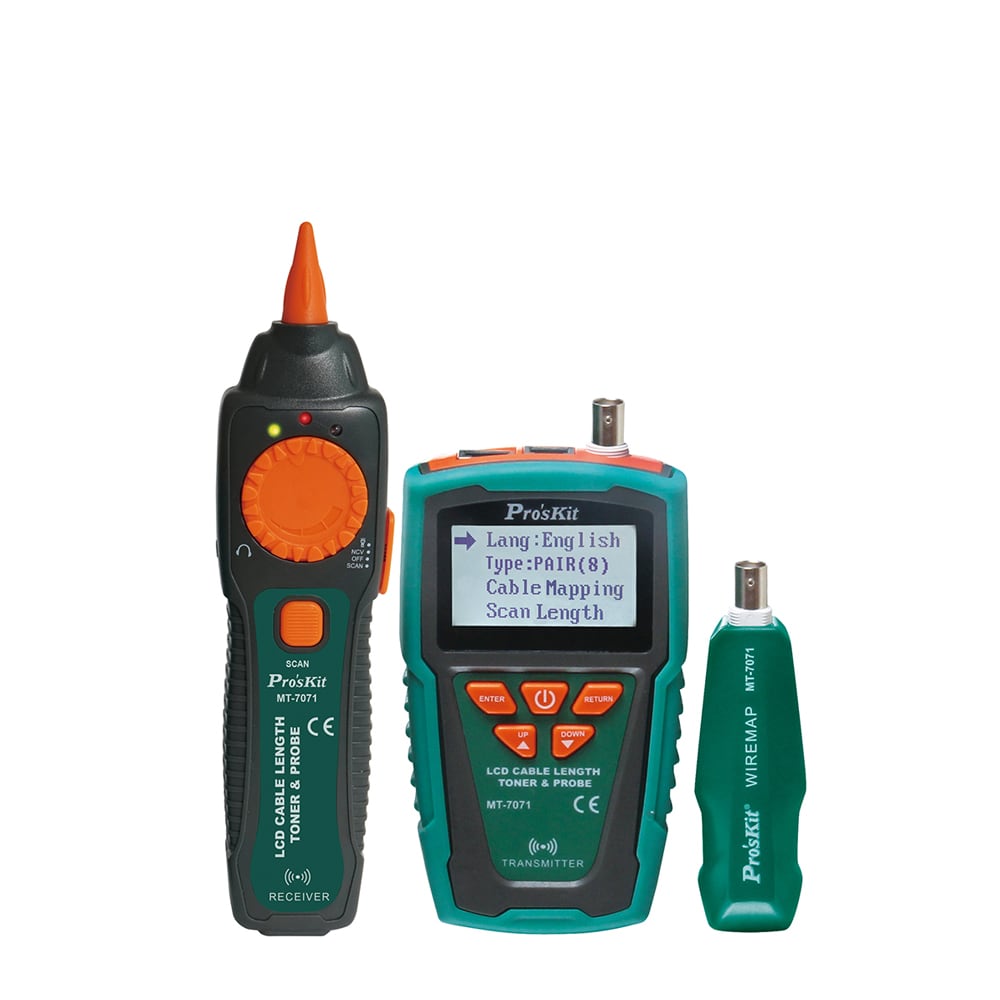

MT-7071 Receiver specifications
Signal status indication 1 kHz , 1 LED & Buzzer, bulding ear jack
NCV indication & LED illumination 1 LED (AC90~1000V) & 1 LED
Dimension (L×W×D) 198×45×33 mm
MT-7071 Remote unit specifications
Remote unit 1 pcs, max. support to 8 pcs (optional)
Compatible connectors RJ45(8 pin)、RJ11/12(6 pin)、BNC connectors
Remote unit dimension (L×W×D) 90×32×30mm
Accessories RJ45 cable patch cord、RJ11/12 cable patch cord、Alligator clips patch cord、Earphone、pounch bag
