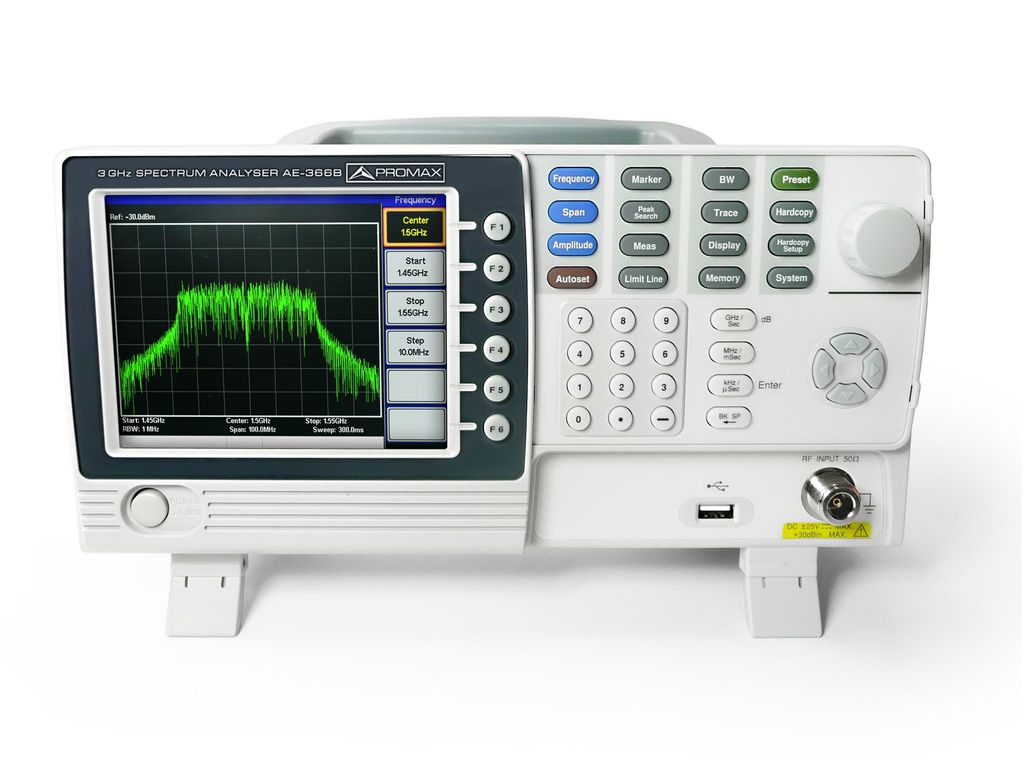

Promax AE-366B Color LCD 3 GHz Portable Spectrum Analyzer

FREQUENCY

- Frequency Range: From 150 kHz to 3 GHz

- Center Frequency: 0.1 MHz

Accuracy: Within ±50 kHz (frequency span: from 0.3 GHz to 2.6GHz, 20 ±5 °C)

- Frequency Span: From 1 MHz to 3 GHz

Accuracy: Within ±3 % (frequency span: from 0.3 GHz to 2.6 GHz, 20 ±5 °C)

- Resolution Bandwidth: 30 kHz, 100 kHz, 300 kHz, 1 MHz

- SSB Phase Noise: -85 dBc/Hz (typical 500 kHz offset, resolution bandwidth: 30 kHz, Sweep time: 1,5 s Span: 1 MHz@1GHz)

- Inherit Spurious Response: Less than -45 dBc @ -40 dBm Reference level (typical less than -50 dBc)

AMPLITUDE

- Reference Level: From +20 to -40 dBm

Accuracy: Within ±2 dB (1 GHz); SPAN: 5 MHz

Units dBm, dBV, dBµV

- Average Noise: Level ≤ -100 dBm (typical, center frequency: 1 GHz resolution bandwidth: 30 kHz)

- Frequency Characteristic: Within ±3 dB @ 300 MHz ~ 2.6 GHz

Within ±6 dB @ 80 ~ 300 MHz, 2.6 ~ 3 GHz

- Input

Impedance: 50 Ω

Input VSWR: Less than 2.0 @ input attenuation ≥10 dB

Input damage level: +30 dB (CW average power), 25 VDC

Input connector: N connector

SWEEP

-Sweep time: From 300 ms to 8,4 s, auto (not adjustable)

Accuracy: ± 2% (frequency span: full span)

Display: 640x480 pixels RGB color LCD

Communication interface: RS-232C (Sub-D female 9 pins)

USB connector (USB Host/Device full speed supported)

VGA Output: Sub-D female 15 pins

Power: AC 100 ~ 250 V, 50/60 Hz

Dimensions: 296 (W.) x 105 (H.) x 105 (D.) mm

Weight: Approx. 2.2 kg
