Bandwidth: 100 MHz
Sample rate: 2 GS/s
Channels: 2 + 1 (external)
Horizontal scale (s/div): From 2 ns/div to 100 s/div, 1-2-5 steps
Trigger: Edge, Pulse, Video, Slope, Alternate
Record length: 2 M max
Screen:8” LCD, TFT display, 640x480 pixels
Dimensions: 370 (W.) x 180 (H.) x 120 (D.) mm
Weight (without package): 2.20 kg
Included accessories: Passive probe (x2), Power cord, USB cable, Quick guide, CD-ROM

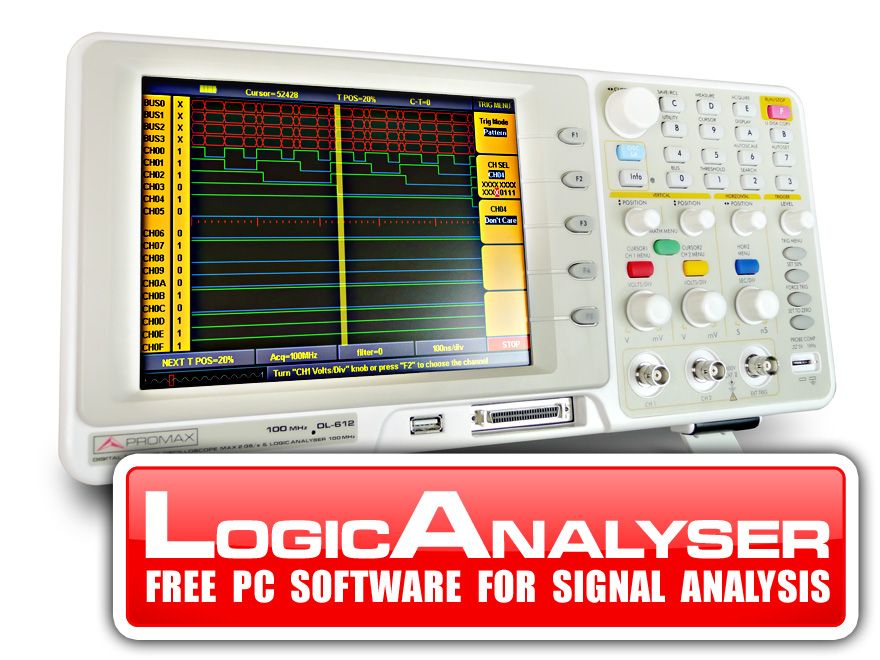

16 CHANNEL LOGIC ANALYSER
Sample rate (real time): From 20 S/s to 1 GS/s
Bandwidth: 200 MHz
Channels: 16
Record length: Max 4M per channel
Input impedance: 660 kΩ ± 5%, in parallel with 15 ±5 pF
