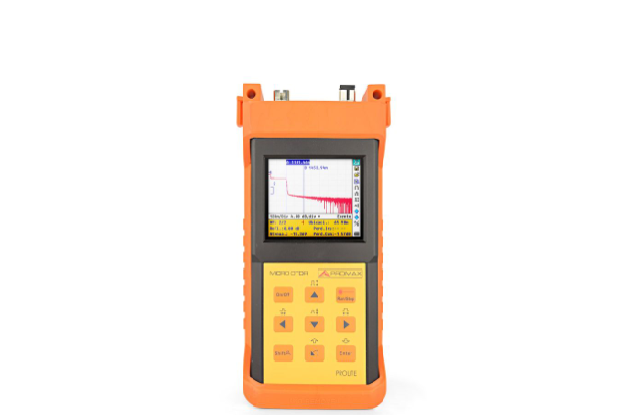

Promax PROLITE-50 Micro OTDR

Manufacturer: Promax

Model:PROLITE-50

Origin: England

Warranty: 12 months

Optical Specifications

Wavelength (±20 nm): 1310/1550 nm

Dynamic Range: 24 dB

Event Deadzone: 10

Attenuation Deadzone: 25

Connector Type: (interchangeable SC, ST, FC) SC / APC

Fibre Type Single mode

Selectable Pulse Width: 5 nS / 10 nS / 12 nS / 30 nS / 100 nS / 275 nS / 300 nS

1 µS / 2.5 µS / 10 µS / 20 µS

Selectable Ranges: 0.3 / 1.3 / 2.5 / 5 / 10 / 20 / 40 / 80 / 120 / 160 / 240 km

Distance Measure Accuracy: ± (1 m + 5 x 10-5 x Distance + sampling space)

Reflection Detect Accuracy: ± 4 dB

Attenuation Detect Accuracy: ± 0.05 dB / dB

Measurement Data Storage: 300 test curves

Visual fault locator

Output power -

Max distance -

General Specifications

Power Supply: NiMH rechargeable battery (8 h. operating, 20 h. stand by) / AC adapter

Data Transmission: RS-232 / USB port

INCLUDED ACCESSORIES: Shockproof rubber, carrying bag, software (in CD-ROM)

Mechanical features

Dimensions and weight: 220 (H.) x 110 (W.) x 70 (T.) mm, 1 kg
