Manufacturer: Promax

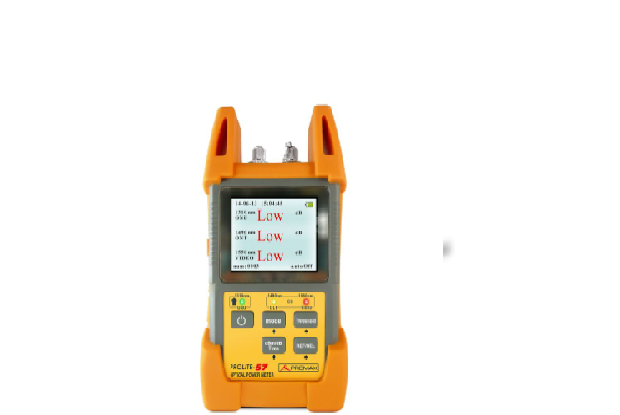

Model:PROLITE-57
Origin: England
Warranty: 12 months
SPECIFICATIONS
Calibrated Wavelength: 1310 nm, 1490 nm and 1550nm
Measuring Range (continuous datastream): -40 to +10 dBm (1310 nm), -50 to +15 dBm (1490 nm), -50 to +20 dBm (1550 nm)
Burst signal measuring range (@ 1310nm ): -32 to +10 dBm
Spectral Pass-band: 1260 ~ 1360 nm (1310 nm), 1480 ~ 1500 nm (1490 nm), 1539 ~ 1565 (1550 nm)
Connector Type: Interchangeable FC, SC and ST
Detector Type: InGaAs
Insertion loss: 1.5 dB
Accuracy: ± 0.5 dB
Linearity: ± 0.2 dB
Interfaces 2 ports: one for 1310nm (ONU) and one for 1490nm/1550nm (OLT)
Communication port: USB
Data Storage: 1000 sets
Display: 2.8 inch TFT Color LCD
Back-light: Yes
Refresh Rate of Display: 2.5 Hz
Threshold Value: 10 sets (configured via PC-based software)
POWER SUPPLY: 4 x 1.2 V Ni-MH AA batteries or 12 V AC/DC Adaptor (optional)
Battery life: > 20 hours on typical measurement
Auto Power Off: Yes
MECHANICAL FEATURES
Dimensions: W. 105 x H. 190 x D. 55 mm (with rubber protector)
Weight: 700 g
