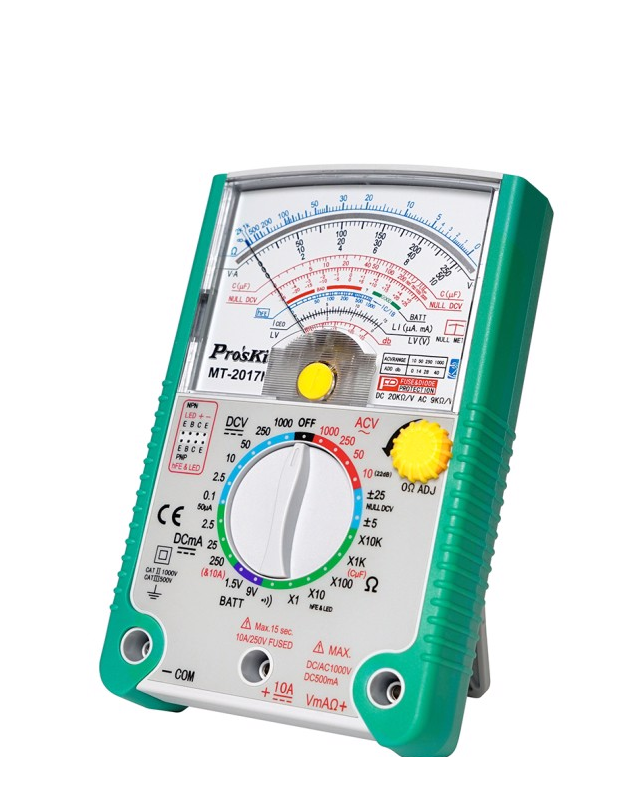

Proskit MT-2017N Protective Function Analog Multimeter

DC Vol:

0.1V/2.5V/10V/50V/250V, ±3% FSD

1000V, ±4% FSD

Null DC Vol: ±5V / ±25V, ±5% FSD

AC Vol:

10V/50V/250V, ±4% FSD

1000V, ±5% FSD

DCA:

50µA/2.5mA/25mA/250mA, ±3% FSD

10A, ±4% FSD

Resistance:

X1: 0.2Ω ~ 2kΩ

X10: 2Ω ~ 20kΩ

X100: 20kΩ ~ 200kΩ

X1k: 200kΩ ~ 2MΩ

X10k: 2kΩ ~ 20MΩ

±4% ARC

Capacitance: 2000µF

BATT Check: 1.5V, 9V ±5% ARC

Decibel: - 22dB ~ +62dB (0dB =1mW tại 600Ω)

POWER Source: 1.5V AAA x 2, 9V x 1

Dimension: 171 mm x 108 mm x 37mm

Weight: 700g

Certificates: CE, ROHS

Standards: CATII 1000V, CATIII 500V
