PROTEK 307 clamp meter (AC/DC 1000A, True RMS) | EMINKH.COM

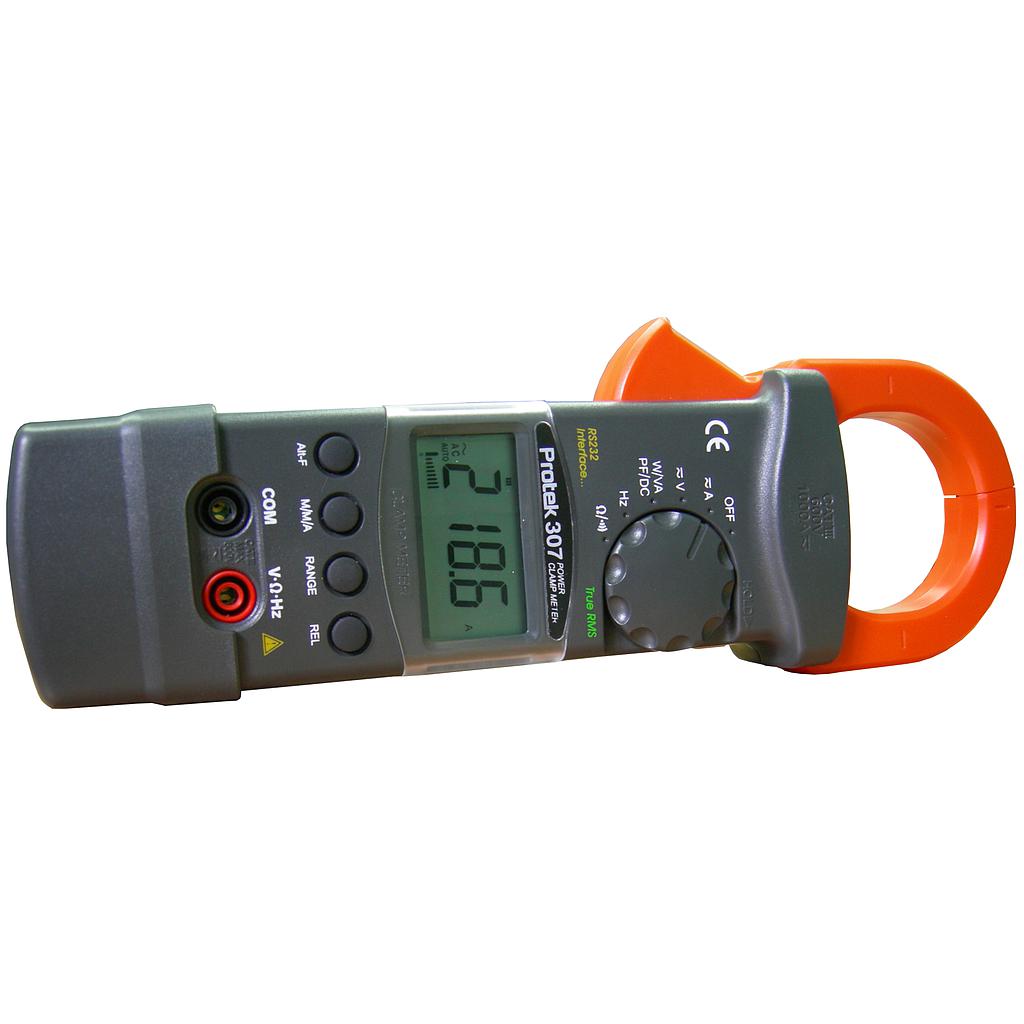

PROTEK 307 clamp meter (AC/DC 1000A, True RMS)

Name: PROTEK 307 clamp meter (AC/DC 1000A, True RMS)
Brand: PROTEK

ManufacturerPROTEK(View more products from this manufacturer)

Model307

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Volts DC

Ranges	400mV, 4V, 40V, 400V, 600V
Best Resolution	100µV
Accuracy	± (0.5% Rgd + 3D)
Maximum Input	1000V DC or 750V RMS
Input Impedance	10MW

Volts AC

Ranges	4V, 40V, 400V, 600V
Accuracy	± (0.5% Rdg + 5D)
Maximum Input	750V RMS
Input Impedance	10MW

Resistance

Ranges	400W , 4KW , 40KW , 400KW , 4MW , 40MW
Best Resolution	0.1W
Accuracy	± (1.5% + 5D)
Maximum Input	250V DC or AC RMS

DC/AC Current

Ranges	400 and 1000 Amps
Best Resolution	0.1A
Accuracy	± (2.0% Rdg + 5D)
Maximum Input	1000 Amps DC or AC RMS

Continuity Buzzer

Buzzer

Will sound at < 40W resistance

Frequency

Ranges	100Hz, 1kHz, 10kHz, 100kHz, 1MHz
Best Resolution	0.01Hz
Accuracy	± (0.2% Rdg + 2D)
Maximum Input	250V DC or AC RMS

Power Measurement True Power

Range	600kW
Resolution	1W
Accuracy	± (2% Rdg + 2D)
Maximum Input	600V or 1000A, DC or AC RMS

Power Measurement Apparent Power

Range	600kVA
Resolution	1VA
Accuracy	± (2% Rdg + 2D)
Maximum Input	600V or 1000A, DC or AC RMS

Power Measurement Power Factor

Range	0.03 to 1
Resolution	0.01
Accuracy	± (2% Rdg + 2D)
Maximum Input	600V or 1000A DC or AC RMS

General Specifications

Operating Temperature	0 to 40°C at a relative humidity of 0 to 80% Rdg
Power	9V battery
Size	10.7" H × 3.4" W × 1.7" D
Jaw Size	2.25"
Weight	1.07 lbs.
Accessories	Manual, Carrying case, Test leads, IR RS-232, Cable and Software, Line splitter (optional)
