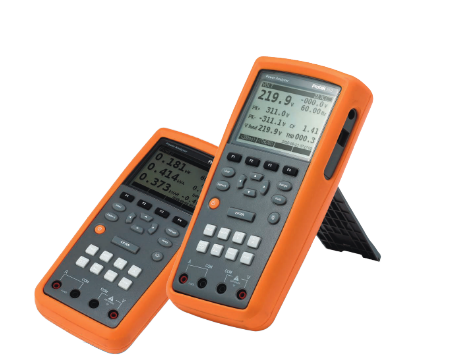

Protek 505A Power Quality Analyzer

Measurement
- Frequency: 40~69Hz; ±1dgt
- T-RMS Voltage: 4~600V; ±(0.5%+5dgt)
- DC Voltage: 4~600V; ±(0.5%+5dgt)
- T-RMS Current: 40~1000A; ±(0.75%+ CT Tolerance)
- DC Current: 40~1000A; ±(0.5%+ CT Tolerance)
- Half-period T-RMS Vol.: 4~600V; ±(0.8%+5dgt)
- Half-period T-RMS Cur.: 40~1000A; ±(0.75%+ CT Tolerance)
- Peak Voltage: 4~600V; ±(0.75%+5dgt)
- Peak Current: 40~1000A; ±(0.75%+5dgt)
- Crest factor: 1.00~9.99; ±(5%+5dgt)
- Active power: 0W~600.0kW; ±(1%+5dgt), Cos ≥ 0.8, ±(1.5%+10dgt), 0.2 ≤ Cos<0.8
- Reactive power: 0VAR~600.0kVAR; ±(1%+5dgt), Sin ɸ ≥ 0.5, ±(1.5%+10dgt), 0.2 ≤ Sin<0.5
- Apparent Power: 0VA~600.0kVA; ±(1%+5dgt)
- Power factor: -1~1 ; ±(1%+5dgt), Cos ≥ 0.8, ±(1.5%+10dgt), 0.2 ≤ Cos<0.8
- Active power: 0Wh~9.999MW; ±(1%+5dgt), Cos ≥ 0.8, ±(1.5%+10dgt), 0.2 ≤ Cos<0.8
- Reactive power: 0VARh~9.999MVARh; ±(1%+5dgt), Sin ɸ ≥ 0.5, ±(1.5%+10dgt), 0.2 ≤ Sin<0.5
- Apparent power: 0VAh~9.999MVAh; ±(1%+5dgt)
- Phase shift: -179°~180°, ±(2°)
- Displacement factor (DPF): -1~1; ±(1°) on ɸ, (5dgts) on DPF
- Tagent VA≥50VA -32.76~32.76 ; ±(1°) on ɸ
- Level of harnomics Oder (VRMS> 50V): 0~999.9%; ±(1%+5dgt)
- Angles of harnomics Oder (VRMS> 50V): -179°~ 180°; ±(3°) Order ∈[1; 25], ±(10°) Order ∈[26; 50]
- Global level of harnomics (THD-F): 0-999.9%; ±(1%+5dgt)
- Distortion factor(THD-R): -999.9%; ±(1%+10dgt)
- K factor: 1~99.99; ±(5%+5dgt)
Enviroment
- Phase-to-phase voltage: 50 to 600 Vrms without DC (<0.5%)
- Phase shift: 0° active power/ 90° reactive power
- Harmonics: <0.1%
- Balanced 3-Phase connection: 3 mode OFF
- Voltage Input
+ Operating Range: Phase- phase-0 to 600Vrms AC/DC
+ Phase-Neutral-0 to 600Vrms AC/DC
- Current Input
+ Operating range: 0 to 1V
+ Overload: 1.7V
Hardware
- Weight&Dimension: 100mm(W)×220mm(D)×54mm(H)/800g (including battery)
- Power Source: Input AC 100V~240V@50/60Hz 0.5% Adapter Output DC12V 1 A
- Battery Capacity: 6Ni-MH Rechargeable Battery Pack>1,800mAh 7.2V 0.8A
