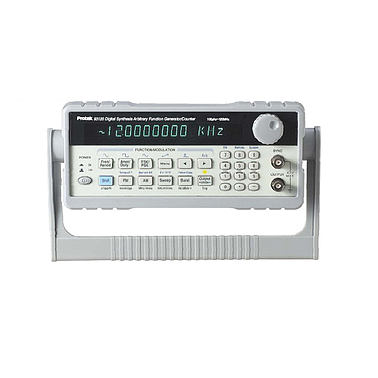

| Spec | | 9310 | | | | |
| Waveform | Frequency Range | Main Waveform | | 100µHz - 10MHz | | | | |
| Stored Waveform | 100µHz~100kHz |
| Resolution | 1µHz |
| Accuracy | 5 0.000001 |
| Stability | 1 0.000001 |
| Frequency | Main Waveform | Sine, Square, TTL |
| Level Resolution | 12Bits |
| Sampling Rate | 200MS/s |
| Sine Waveform Distortion Harmonic | -50dBc(Freq ≤ 5MHz), -45dBc(Freq ≤ 10MHz), -40dBc(Freq ≤ 20MHz), -35dBc(Freq ≤ 40MHz) |
| Sine Waveform Distortion | 0.1% (20MHz~100kHz) |
| Square Waveform Rising/Falling Time | Less than 25ns | Less than 15ns |
| Stored Waveform | Waveforms | 27 Waveforms (Sine, Square, Triangle, Up-lamp, Down-lamp, Noise, Pulse, P-pulse, N-pulse, P-dc, N-dc, Stair, c-pulse, Commut-fu, Commut-hr, Sine-tra, Sine-ver, Sine-pm, Log, Exp, Round-har, sin%, Squ-root, Angent, Cardio, Quake, Combin) |
| Waveform Length | 4096Dots |
| Amplitude Resolution | 10Bits |
| Duty Factor of Pulse Wave | 0.1% ~ 99.9% (Less than 10kHz), 1% ~ 99% (10kHz ~ 100kHz) |
| Amplitude | Amplitude Range | 2mV ~ 20Vp-p(High Impedance), 1mV ~ 10Vp-p(50Ω) |
| Max. Resolution | 2µVp-p(High Impedance), 1µVp-p(50Ω) |
| Amplitude Accuracy (at 1kHz) | (1%+0.2mV) |
| Amplitude Stability | 5% / 3hours |
| Flatness | Amplitude ≤ 2V | 3% (Freq ≤ 5MHz), 10% (5MHz < Freq ≤ 40MHz) |
| Amplitude > 2V | 5% (Freq ≤ 5MHz), 10% (5MHz < Freq ≤ 20MHz), 20% (5MHz < Freq ≤ 20MHz) |
| Output Impedance | 50Ω |
| Offset | Offset Range | 10V(High Impedance), 5V(50Ω) |
| Resolution | 2µV(High Impedance), 1µV(50Ω) |
| Error | 1%+10mV |
| AM | Carrier Waveform | Sine, Square |
| Modulation Mode | INT, EXT |
| Modulation Signal | Waveform | Sine, Square, Triangle, Up-Lamp, Down-Lamp |
| Frequency | 10µHz ~ 20kHz |
| Relative Modulation Error | (5%+0.2)100µHz < Freq ≤ 10kHz, (10%+0.5)(10kHz < Freq ≤ 20kHz) |
| Modulation Depth | 1%~120% |
| Amplitude of External Input Signal | 3Vpp (+1.5V~-1.5V) |
| FM | Carrier Waveform | Sine, Square |
| Modulation Mode | INT, EXT |
| Modulation Signal | Waveform | Sine, Square, Triangle, Up-Lamp, Down-Lamp |
| Frequency | 100µHz~10kHz |
| Frequency Offset | Max, 50% of Carrier Frequency for Internal FM; Max, 10% of Carrier Frequency of External FM; Input Signal Voltage 3Vp-p (+1.5V~-1.5V) |
| FSK Modulation | Input Signal | Either Frequency 1 or Frequency 2 |
| Control Mode | INT, EXT (TTL Level, Low Level F1, High Level F2) |
| Alternation Rate | 0.1ms ~ 800s |
| PM | Waveform | Sine, Square |
| PSK Modulation | PSK | Phase 1 (P1), Phase 2 (P2) |
| Range | 0.1° ~ 360.0° |
| Resolution | 0.1° |
| Alternation Time Interval | 0.1ms ~ 800s |
| Control Mode | INT, EXT (TTL Level, Low Level P1, High Level P2) |
| Burst | Waveform | Sine, Square |
| Burst Counting | 1~10000 Period |
| Alternation Time Interval | 0.1ms ~ 800s |
| Control Mode | INT, EXT |
| Sweep | Waveform | Sine, Square |
| Time | 1ms~800s (linear), 100ms~800s(log) |
| Mode | Linear, Log |
| External Trigger Signal Frequency | DC ~ 1kHz(linear), DC ~ 10kHz(log) |
| Control Mode | INT, EXT |
| Output of Modulation Signal | Waveform | Sine, Square, Triangle, Up-Lamp, Down-Lamp |
| Frequency | 100µHz ~ 20kHz |
| Amplitude | 5Vpp 2% |
| Output Impedance | 620Ω |
| Storage | Storage Parameter | Single Frequency, Amplitude, Waveform, DC Offset Values and Function State |
| Storage Capacity | 10 Signal |
| Frequency Measurement |
| Frequency Range | 1Hz ~ 100 MHz |
| Min. Input Voltage | ATT Open | 50mV (Freq 10Hz ~ 50MHz), 100mV (Freq 1Hz ~ 100 MHz) |
| ATT Close | 0.5V (Freq 10Hz ~ 50MHz), 1V (Freq 1Hz ~ 100 MHz) |
| Max. Input Voltage | 100Vpp (Freq ≤ 100kHz), 20Vpp (1Hz ~ 100 MHz) |
| Low Pass Filter | | Cut off Frequency about 100kHz |
| With Internal Attenuation | ≤ -3dB |
| With External Attenuation | ≥ -3dB (Freq > 1MHz) |
| Gate Time | 10ms ~ 10s |
| Operation Characteristics |
| Power | 220V 10%, 50~60Hz, Max, 35W |
| Temperature/Humidity | 0°C ~ 40°C, 35% ~ 80% |
| Dimension | 255mm 370mm 100mm |
