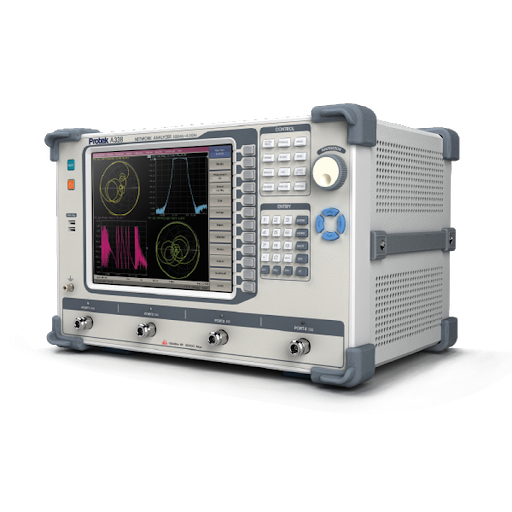

Protek A338 300 KHz ~8 GHz Network Analyzer
ManufacturerPROTEK(View more products from this manufacturer)
ModelA338
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
| Frequency Range | 300kHZ to 8 GHz | |
| CW Frequency Accuracy | ±5 x 10-6 | |
| Harmonic Distortion | -25 dBc | |
| Non Harmonic Spurious | -30 dBc | |
| Output Power Level | 300kHz to 6.0 GHz | |
| 6.0 GHz to 8.0 GHz | ||
| Output Power Level Accuracy | ± 1.0dB | |
| Magnitude transmission Measurement Accuracy | +5dB to +15dB | |
| -50dB to +5dB | ||
| -70 dB to -50 dB | ||
| -90 dB to -70 dB | ||
| Phase Transmission Measurement Accuracy | +5dB to +15dB | |
| -50dB to +5dB | ||
| -70 dB to -50 dB | ||
| -90 dB to -70 dB | ||
| Magnitude reflection Measurement Accuracy | -15 dB to 0 dB | |
| -25 dB to -15 dB | ||
| -35 dB to -25 dB | ||
| Phase reflection Measurement Accuracy | -15 dB to 0 dB | |
| -25 dB to -15 dB | ||
| -35 dB to -25 dB | ||
| Receiver Noise Floor (IF bandwidth 10Hz) | -125 dBm | |
| Trace Noise (IF bandwidth 3kHz) | 0.001 dB rms | |
| Uncorrected Directivity | -18 dB | |
| Uncorrected Source Match | -18 dB | |
| Uncorrected Load Match | -18 dB | |
| AC mains power | 100 to 240 VAC; 50/60Hz | |
| Power Consumption | 110W | |
| Dimensions (LxWxH) | 320 x 439 x 280 mm | |
| Weight | 20 kg | |
| Operating Conditions | Temperature | 5C to 40C |
| Humidity at 25C | 90% | |
| Atmospheric Pressure | 84 to 106.7 kPa | |
