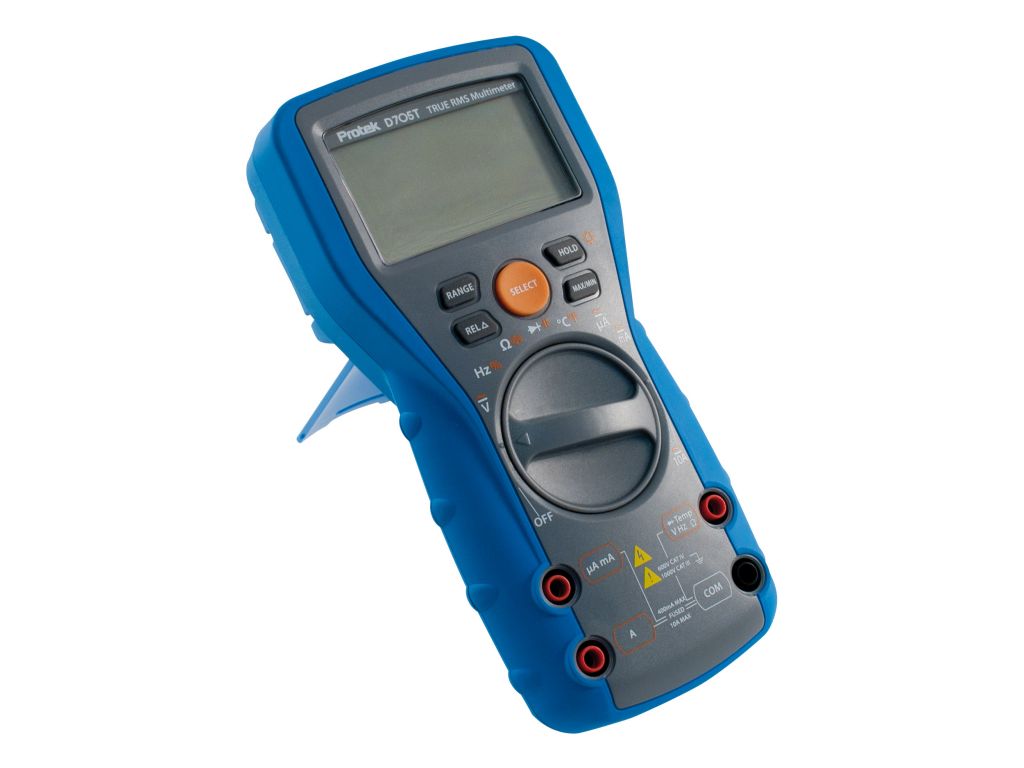

PROTEK D705T Digital Multimeter

Name: PROTEK D705T Digital Multimeter
Brand: PROTEK

ManufacturerPROTEK(View more products from this manufacturer)

ModelD705T

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Specifications of the Protek D705 & D705T
DC Voltage	Range		500mV		5V	50V	500V	1000V
	Resolution		0.1mV		0.001mV	0.01V	0.1V	1V
	Accuracy		±(0.09% + 2d)		±(0.09% + 5d)	±(0.09% + 2d)	±(0.09% + 2d)	±(0.09% + 2d)
AC Voltage	Range		500mV		5V	50V	500V	1000V
	Resolution		0.1mV		0.001mV	0.01V	0.1V	1V
	Accuracy	(45Hz ~ 500Hz)	±(0.8% + 5d) True RMS
		(500Hz ~ 1KHz)	±(1.0% + 5d) True RMS
DC Current	Range		500μA	5000μA	50mA	400mA	5A	10A
	Resolution		0.1μA	1μA	10μA	100μA	1mA	10mA
	Accuracy		±(1.0% + 3d)
AC Current	Range		500μA	5000μA	50mA	400mA	5A	10A
	Resolution		0.1μA	1μA	10μA	100μA	1mA	10mA
	Accuracy	(45Hz ~ 500Hz)	±(0.8% + 5d) True RMS				±(1.5% + 10d) True RMS	±(0.8% + 5d) True RMS
		(500Hz ~ 1KHz)	±(2.0% + 5d) True RMS				±(2.0% + 10d) True RMS	±(2.0% + 5d) True RMS
Resistance	Range		500Ω	5kΩ	50kΩ	500kΩ	5MΩ	50MΩ
	Resolution		0.1Ω	0.001kΩ	0.01kΩ	0.1kΩ	0.001MΩ<Ω	0.01MΩ
	Accuracy		±(1.0% + 5d)					±(1.5% + 10d)
Diode Test	Range		2V
	Resolution		0.001V
	Accuracy		±(2.0% + 5d)
Temperature	Range		-40°C ~ 400°C			-40&def;F ~ 752°F
	Resolution		0.1°C			0.1°F
	Accuracy		±(3.0% + 3.0°C)			±(3.0% + 5.4°C)
Frequency	Range		9.999Hz	99.99Hz	999.9Hz	9.999kHz	99.99kHz	999.9kHz
	Resolution		0.001 Hz	0.01 Hz	0.1 Hz	1 Hz	10 Hz	100 Hz
	Accuracy		±(0.1% + 3d)
Sensitivity			Vpp = ±300mV (Square wave Input)
Duty	Range		1.0% ~ 99.0%
	Resolution		0.1%
	Accuracy		0.5 Hz to 300 KHz (plus width < 3 μS)			(0.1% + 0.05 per KHz + 1 count) for ± 600m V p-p Square wave input
Capacitance	Range		40nF	400nF	4μF	40μF	400μF	4000μF
	Resolution		0.01nF	0.1nF	0.001μF	0.01μF	0.1μF	1μF
	Accuracy		± (3.0% + 10d)					± (3.5% + 30d)
Continuity Test	Range		500 Ω		Threshold		1 msec
	Resolution		0.1 Ω
	Accuracy		± (1.0% + 5d)		Approx. 25Ω		1 msec
